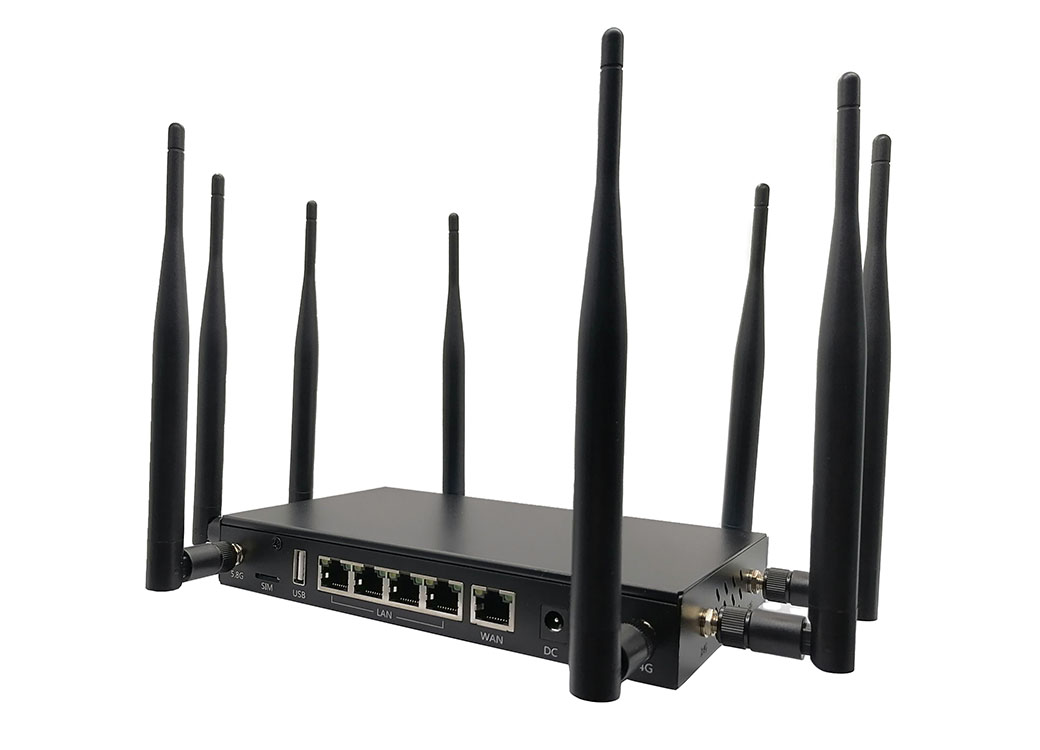

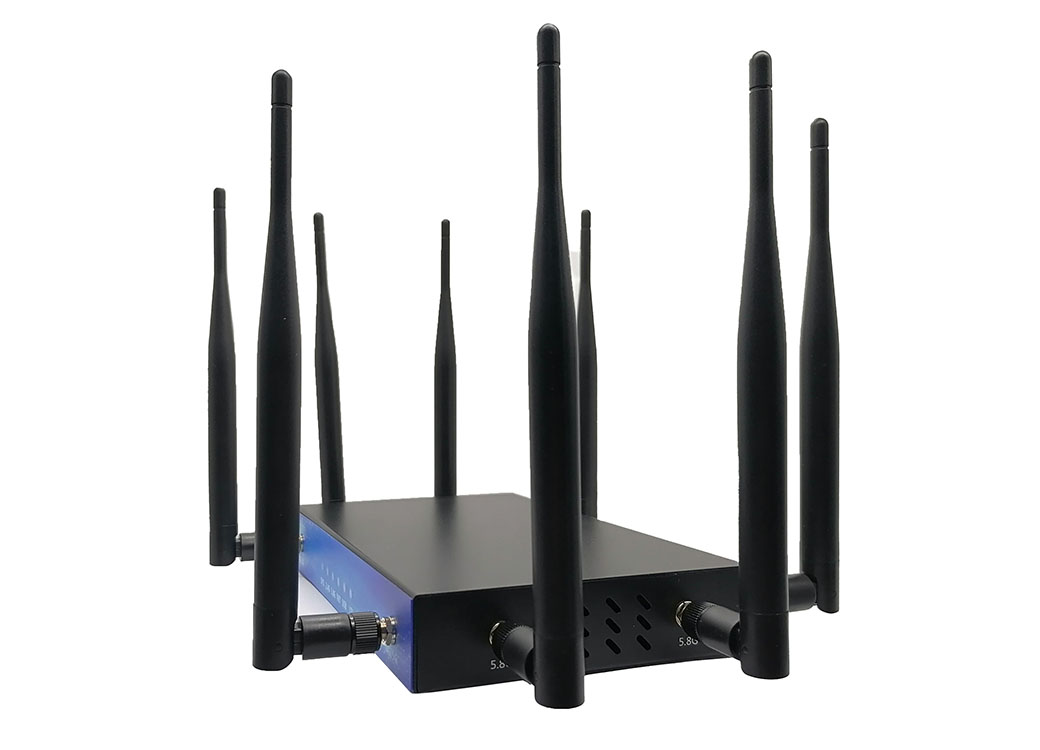

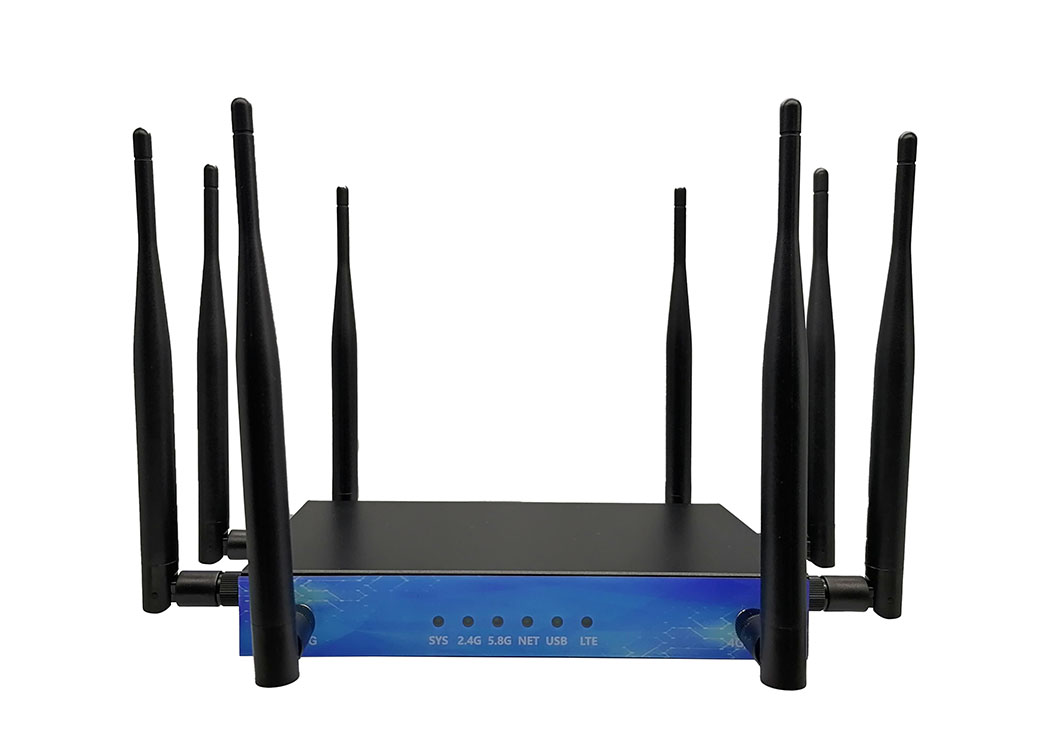

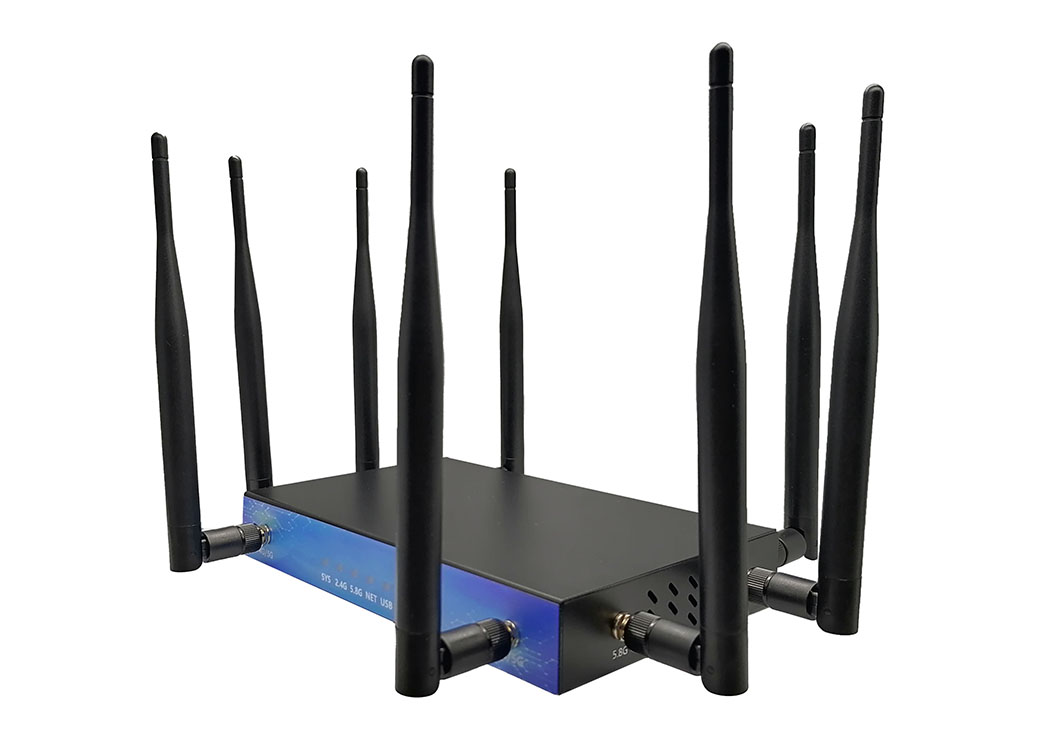

IPQ4019 IPQ4029 Quad-Core Embedded wifi router board
Bookmark and Share
  • Chipset

    IPQ4019/4029 Quad-core ARM Cortex A7

    PHY:  QCA8075

    Memory

    512MB  DDR3 (MAX:1GB)

    NAND Flash

    128MB

    NOR Flash

    16MB

    Wireless

    (2X2 11N+2X2 11AC)



    2.4G 400Mbps + 5G 867Mbps



    Built-in 2.4GHz 802.11b/g/n at 23dBm (aggregate),

    2x U.FL connectors


    SE2623L: POUT = +24dBm MCS8/9 VHT40 -35dB Dynamic EVM



    Built-in 5GHz 802.11ac/a/n at 23dBm (aggregate),

    2x U.FL connectors


    RFPA5542: POUT = +23dBm MCS9 VHT80 -35dB Dynamic EVM

    Expansion port

    1 * PCIE2.0

    1 * USB 3.0

    1 * USB 2.0

    Interface

    5 * Gigabit Ethernet Port

    2 * SPI

    2 * UART

    1 * SDIO

    1 * JTAG

    DC Power In

    DC 3.3V 3A

    DC 5V 3A

    Dimension

    75*75*10mm

    Environment

    Operating Temperature: -20 ~ 70,

    Storage Temperature: -40 ~ 90

    Operating Humidity: 5% to 95% non-condensing,

    Storage Humidity: Max. 90% non-condensing


  • Download
  • Description

    I1000 is Qualcomm IPQ4019 chipset based dualband 11AC wifi router module, comply with IEEE 802.11a/b/g/n/ac Wave 2 protocol, wireless speed upto 1200Mbps, I1000 has various port 5 * Gigabit Ethernet Port,2 * SPI,2 * UART,1 * SDIO,1 * JTAG etc..., with PH2.0 connectors can work as a fantastic embedded board expand to other board.



    Features

    • Preload OpenWRT OS
    • Dualband 1200Mbps
    • Support 3G/4G PCIe connector
    • Support Wired & 4G wireless network load balancing
    • Support USB expand storage
    • Support VPN ,PPTP,L2TP
    • Dynamic IP /Static,IP/PPPoE ,PPTP/L2TP/BigPond
    • Support TFTP,web uploading firmware
