CPU |
Atheros AR9344 |
|
Hardware |
|
|
Flash |
8M/16M |
|
SDRAM |
128M |
|
Antenna |
2*5dBi detachable antenna |
|
Interface |
1 WAN ,4 LAN ports,1 USB2.0 |
|
Button |
Reset |
|
LED |
Power ,LAN Link/Act,WIFI |
|
Software |
|
|
System |
OPENWRT |
|
Work Mode |
AP,Router,Client,Repeater,Bridge |
|
WAN Type |
Dynamic IP /Static IP/PPPoE ,PPTP/L2TP/BigPond |
|
Port Forwarding |
Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port |
|
Wireless |
|
|
Standard |
IEEE802.11b/g/n ,IEEE802.1x ,IEEE802.3/3u |
|
Frequency Range |
2.4-2.4835GHz |
|
Signal Rate |
300Mbps |
|
Transmit Power |
27dBm (500MW) |
|
Data Transfer Rate |
802.11n:40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps);
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) |
|
Security Encryption |
64/128/152-bit WEP/WPA/WPA2 ,WPA-PSK ,WPA2-PSK |
|
Power Supply |
12V DC |
|
Environment |
|
|
Storage Temperature |
-45C~85C |
|
Operate Temperature |
-25C~75C |
|
Operating Humidity |
95% ( Non-condensing) |
Description

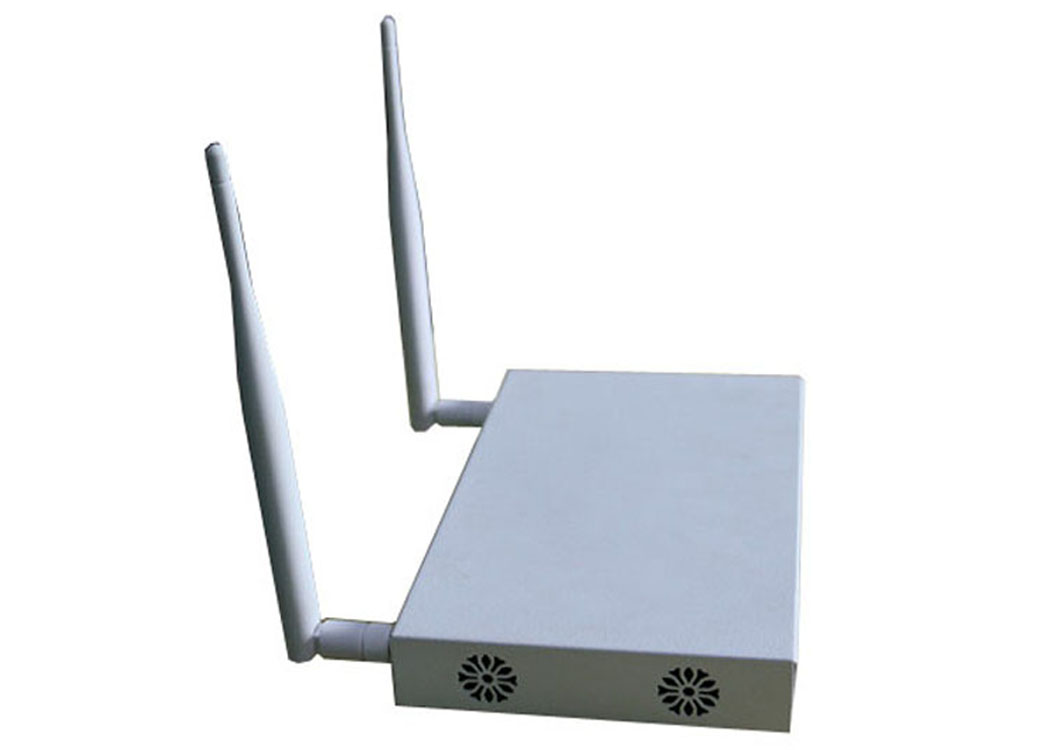

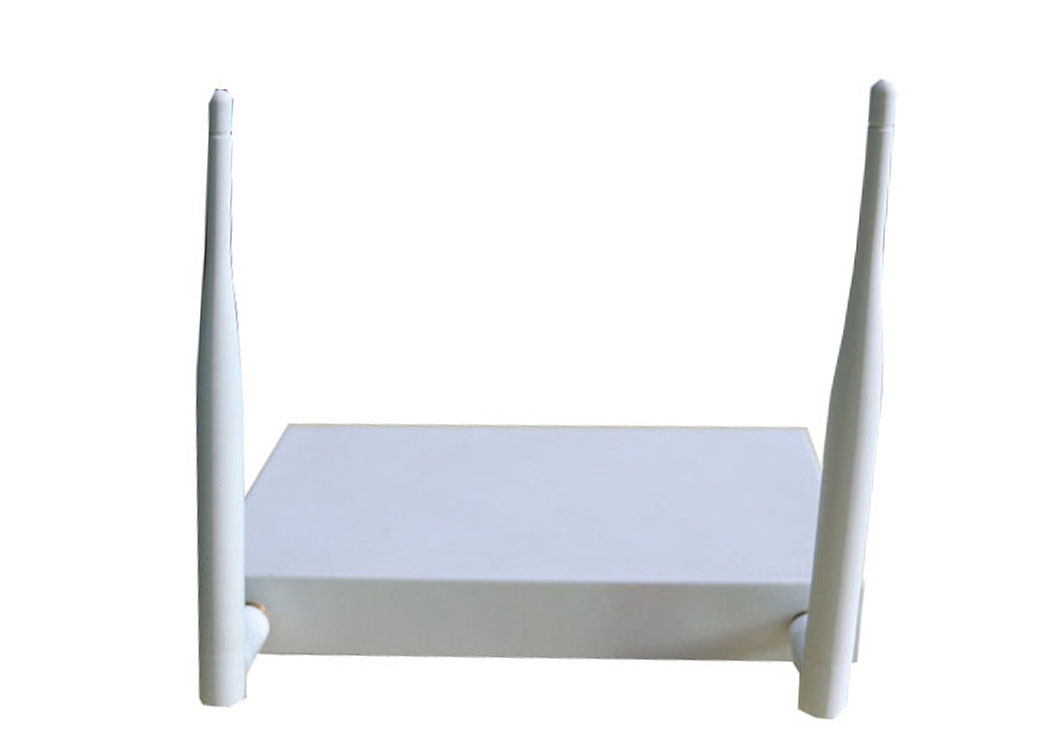

OMY-G2 is Atheros AR9344 chipset based 11N wireless router, with 500mW high power design can enlarge wifi signal very well ,very suitable for business wifi coverage use.Features
- Wireless speed up to 300Mbps
- Atheros AR9344 chipset
- OpenWRT system preloaded
- Transmit Power up to 27dBm (500MW)
- Metal case,durable quality
