Wall mount / Desktop 300Mbps Wireless Router
Bookmark and Share
  • Platform

    CPU

    Mediatek MT7620A, 580MHz

    Hardware

    Flash

    8M/16M

    SDRAM

    64M/128M

    Antenna

    2*5dBi detachable antenna

    Interface

    1 WAN ,4 LAN ports,1 USB2.0

    Button

    Reset

    LED

    Power ,LAN Link/Act,WIFI

    Software

    System

    OPENWRT

    Work Mode

    AP,Router,Client,Repeater,Bridge

    WAN Type

    Dynamic IP /Static

    IP/PPPoE ,PPTP/L2TP/BigPond

    Port Forwarding

    Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port

    Wireless

    Standard

    IEEE802.11b/g/n ,IEEE802.1x ,IEEE802.3/3u

    Frequency Range

    2.4-2.4835GHz

    Signal Rate

    300Mbps

    Transmit Power

    27dBm (500MW)

    Data Transfer Rate

    802.11n:40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps);

    20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
    801.11g:(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
    802.11b:(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

    Security Encryption

    64/128/152-bit WEP/WPA/WPA2 ,WPA-PSK ,WPA2-PSK

    Power Supply

    12V DC

    Environment

    Storage Temperature

    -45C~85C

    Operate Temperature

    -25C~75C

    Operating Humidity

    95% ( Non-condensing)


  • Download
  • Description

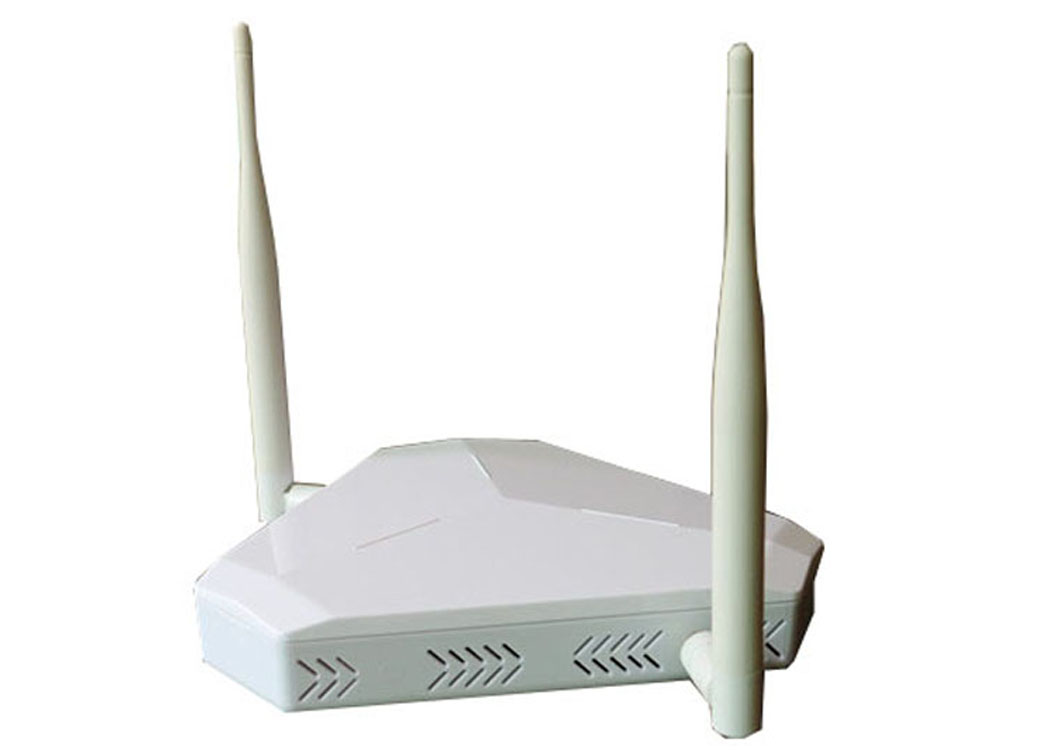

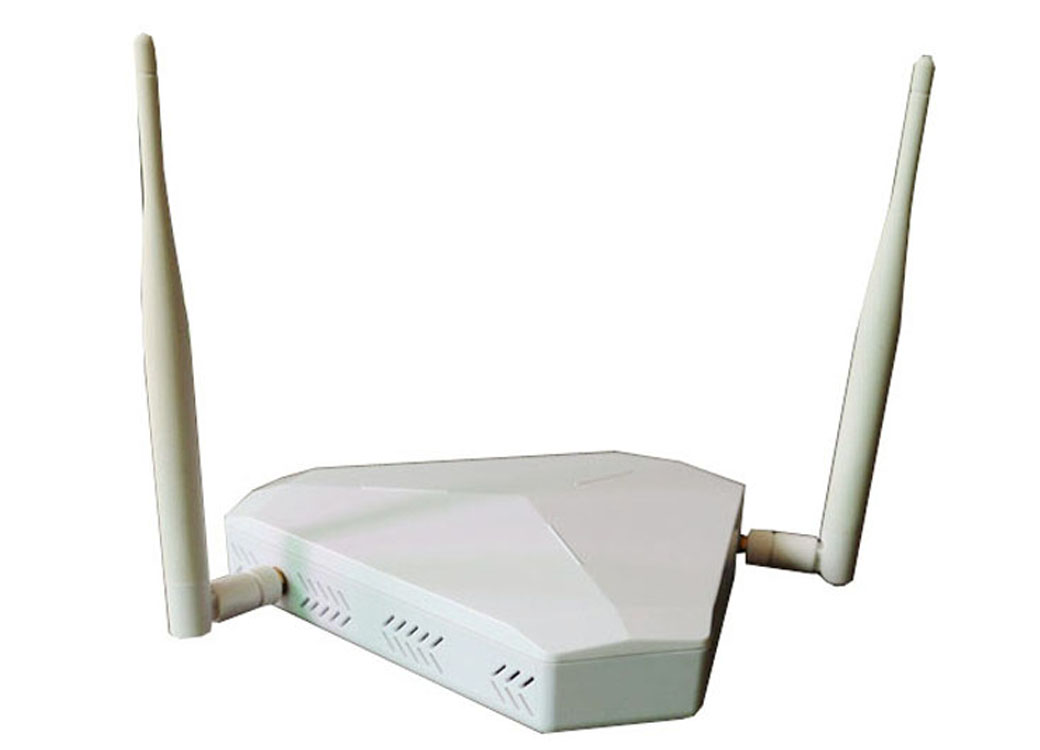

    OMY-WR241 is Mediatek MT7620A chipset based 11N wireless router, with 500MW high power design can enlarge wifi signal very well. support OpenWRT, the plastic case can be both wall mounted and desktop make it very suitable for home , soho and business wifi coverage use.


    Features

    • Wireless speed up to 300Mbps
    • Mediatek chipset MT7620A, 580MHz
    • Support Openwrt system
    • Transmit Power up to 27dBm (500mW)

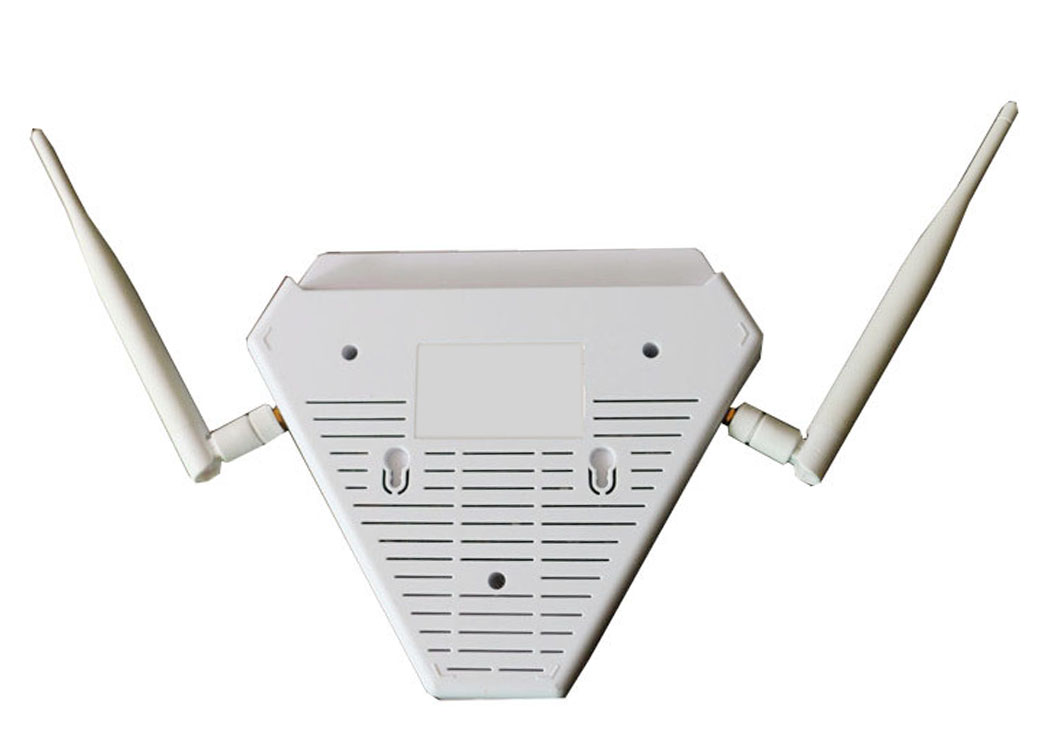

    • Plastic case,both wall mount and desktop available
