Platform |
|
|
CPU |
MT7621AT Dual-core, 880MHz |
|
Hardware |
|
|
Flash |
32MB |
|
SDRAM |
512MB DDR3 |
|
Antenna |
External antenna x 4 |
|
Ethernet Ports |
10/100/1000Mbps WAN x1 , 10/100/1000Mbps LAN x 4, |
|
Interface |
USB 2.0 x 1, USB 3.0 x 1, SD card x 1, |
|
Button |
Reset |
|
LED |
2.4G x 1, 5.8G x 1, SY1 x1, SY2 x1, |
|
Software |
|
|
System |
Open-WRT,PandoraBox OS |
|
Work Mode |
AP,Router |
|
WAN Type |
PPPoE,DHCP,Static |
|
Port Forwarding |
Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port |
|
QoS |
Support |
|
MAC Clone |
Support |
|
URL Filter |
Support |
|
NTP Synchronize |
Support |
|
Wireless |
|
|
Standard |
IEEE 802.11b/g/n/ac |
|
Frequency Range |
2.4Ghz, 5.8Ghz |
|
Signal Rate |
1200Mbps (2.4G 300Mbps + 5.8G 867Mbps) |
|
Transmit Power |
27dBm (2.4Ghz) , 25dBm (5.8Ghz) |
|
Data Transfer Rate |
802.11ac:1200Mbps (2.4G 300Mbps + 5.8G 867Mbps) 802.11n:40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps);
20MHz (144Mbps, 130Mbps,
115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) |
|
Security Encryption |
64/128/152-bit WEP/WPA/WPA2 ,WPA-PSK ,WPA2-PSK |
|
Power Supply |
DC 12V,2A |
|
Environment |
|
|
Storage Temperature |
-45˚C～85˚C |
|
Operate Temperature |
-25˚C～75˚C |
|
Operating Humidity |
95% ( Non-condensing) |
Description

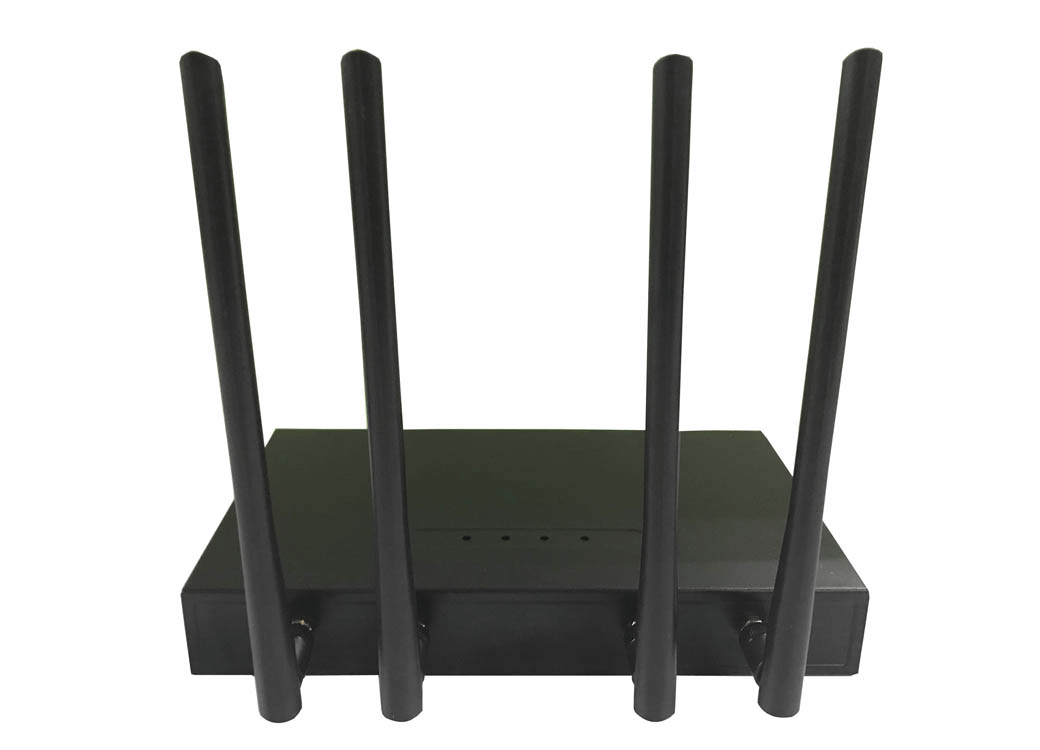

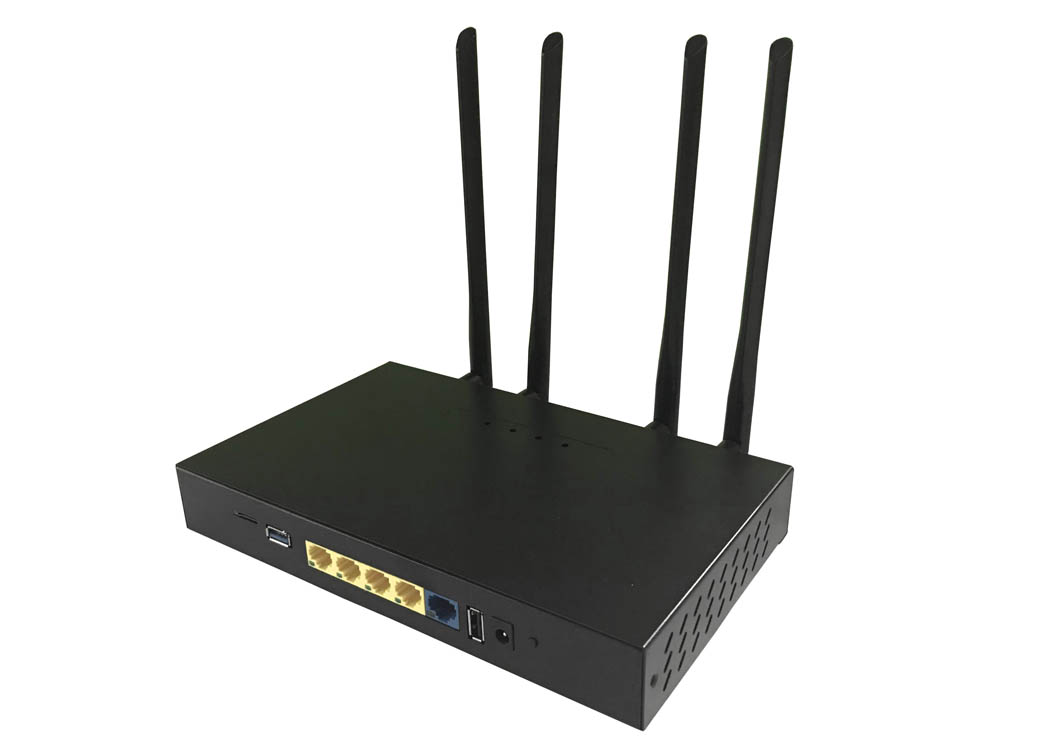

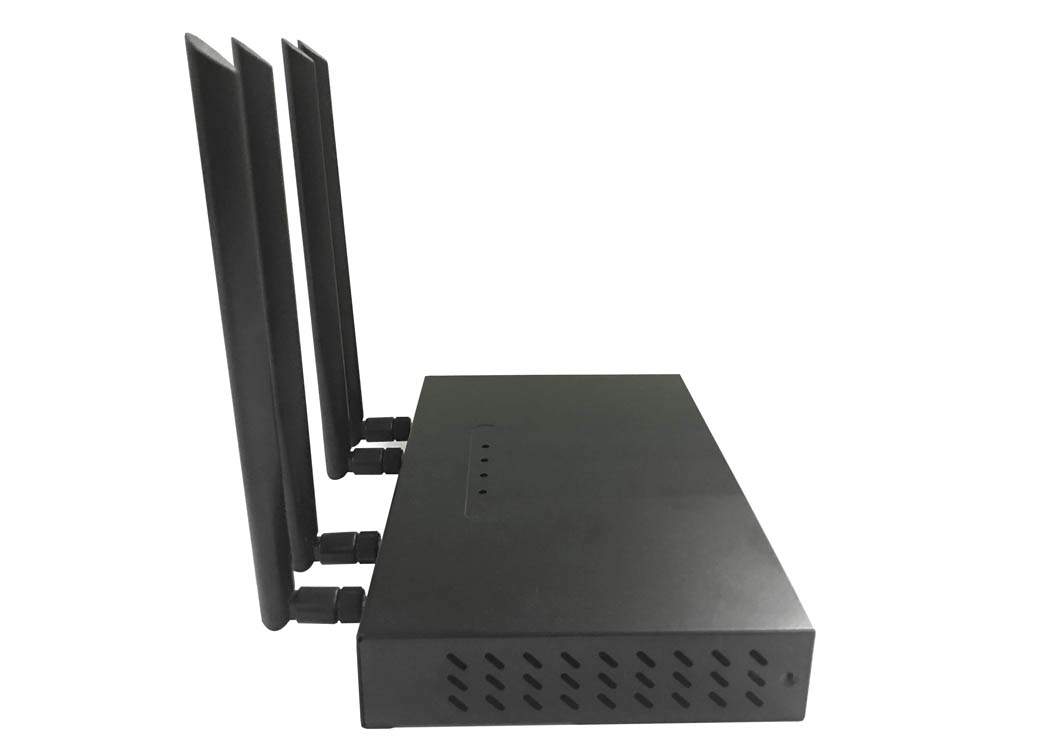

OMY-M2 is dual band (2.4GHz & 5GHz) full Gigabit wireless router with all 1000Mbps Ethernet Ports wireless speed up to 1167Mbps support 2x2 MIMO, with 500mW high transmit power It can expand wifi coverage very well.
OMY-M2 designed with a USB3.0 socket can support high effective files transfer. With USB2.0, TF-card socket users can not only use it as a household router, but also can enjoy and share videos, pictures...etc.
OMY-M2 fully match up with Pandora Box OS., it can become a high performance management terminal and an intelligent center device.
Features
- lMain Chipset: MT7621AT (Dual-core, 880MHz)
- Dual band 2.4Ghz + 5.8Ghz
- Wireless Speed up to 1200Mbps
- IEEE Standard: 802.11b/g/n/a/ac, 2*2MIMO
- Wireless transmit power up to 500mW (27dBm)
- Full 10/100/1000Mbps RJ45 port (Auto MDI/MDIX)
