Platform |
|
|
CPU |
Qualcomm QCA9531 |
|
Hardware |
|
|
Flash |
8M |
|
SDRAM |
64M |
|
Antenna |
2*5dBi detachable antenna |
|
Interface |
1 WAN ,4 LAN ports,1 USB2.0 |
|
Button |
Reset |
|
LED |
Power ,LAN Link/Act,WIFI |
|
Software |
|
|
System |
OPEN-WRT |
|
Work Mode |
AP,Router,Client |
|
WAN Type |
Dynamic IP /Static IP/PPPoE ,PPTP/L2TP/BigPond |
|
Port Forwarding |
Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port |
|
Wireless |
|
|
Standard |
IEEE802.11b/g/n ,IEEE802.1x ,IEEE802.3/3u |
|
Frequency Range |
2.4-2.4835GHz |
|
Signal Rate |
300Mbps |
|
Data Transfer Rate |
802.11n:40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps);
20MHz (144Mbps, 130Mbps,
115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) |
|
Security Encryption |
64/128/152-bit WEP/WPA/WPA2 ,WPA-PSK ,WPA2-PSK |
|
Power Supply |
DC 5V,1A |
|
Environment |
|
|
Storage Temperature |
-45˚C～85˚C |
|
Operate Temperature |
-25˚C～75˚C |
|
Operating Humidity |
95% ( Non-condensing) |
Description

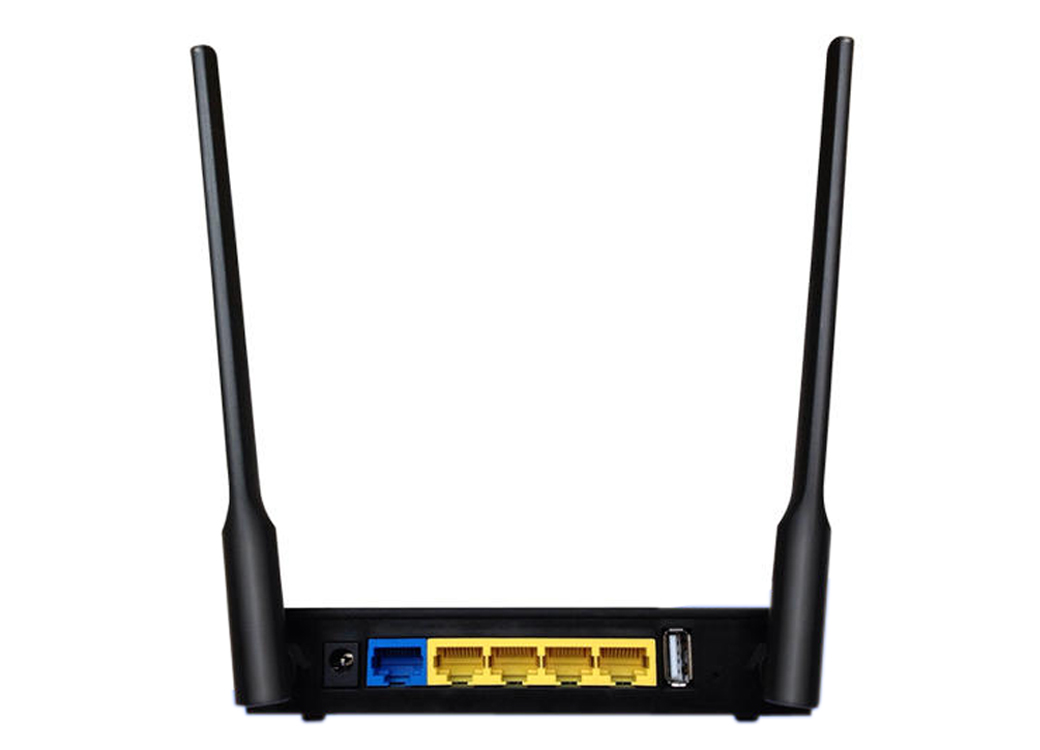

OMY-WR615 is Qualcomm QCA9531 chipset based 11N wireless router, wireless speed up to 300Mbps with 1 WAN port and 4 LAN port, specially design for home,soho and small office use, also support Openwrt system for redevelop use.Features
-
Wireless speed up to 300Mbps
-
Qualcomm QCA9531 chipset
-
IEEE 802.11b/g/n Standard
-
WAN x 1 , LAN x 4 , USB 2.0 x 1
-
5dBi External antenna x 2
-
Support OpenWRT
