Chipset |
IPQ4019/4029 Quad-core ARM Cortex A7 PHY: QCA8075 |
|
Memory |
256MB DDR3 (MAX:1GB) |
|
NAND Flash |
128MB |
|
NOR Flash |
8MB /16MB |
|
Wireless (2X2 11N+2X2 11AC)
|
2.4G 400Mbps + 5G 867Mbps
Built-in 2.4GHz 802.11b/g/n at 23dBm (aggregate), 2x U.FL connectors
Built-in 5GHz 802.11ac/a/n at 23dBm (aggregate), 2x U.FL connectors
|
|
Expansion port |
1 * PCIE2.0 1 * USB 3.0 1 * USB 2.0 |
|
Interface |
5 * Gigabit Ethernet Port 2 * SPI 2 * UART 1 * SDIO 1 * JTAG |
|
DC Power In |
DC 3.3V 3A DC 5V 3A |
|
Dimension |
75*75*10mm |
|
Environment |
Operating Temperature: -20 ~ 70℃ Storage Temperature: -40℃ ~ 90℃ Operating Humidity: 5% to 95% non-condensing Storage Humidity: Max. 90% non-condensing |
Description

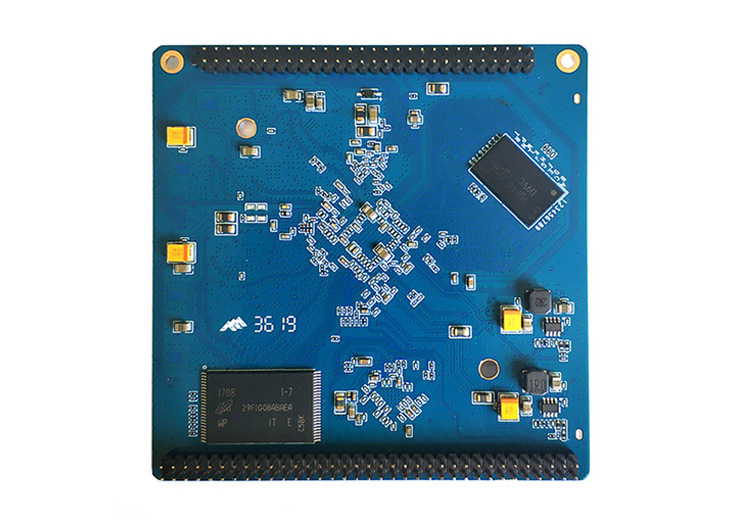

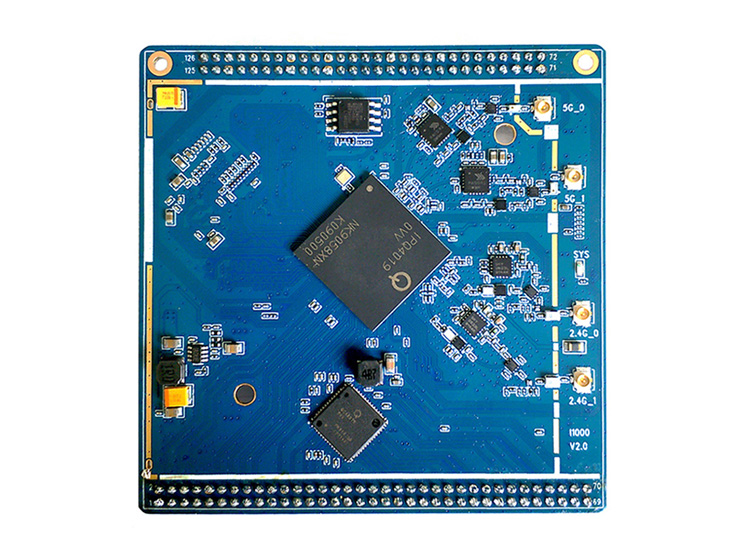

I1000 is Qualcomm IPQ4019/ 4029 chipset based dualband 11AC wifi router module, comply IEEE802.11a/b/g/n/ac Wave 2 protocol, wireless speed upto 1300Mbps, I1000 has various port 5 * Gigabit Ethernet Port,2 * SPI,2 * UART,1 * SDIO,1 * JTAG etc..., with PH2.0 connectors can work as a fantastic embedded board expand to other board.
Features
- Dualband wireless speed upto 1300Mbps
- Support 3G/4G modem PCIe connector
- Support Wired & 3G/4G/5G wireless network load balancing
- Support USB expand storage
- Support VPN ,PPTP,L2TP
- Dynamic IP /Static,IP/PPPoE ,PPTP/L2TP/BigPond
- Support TFTP,web uploading firmware
