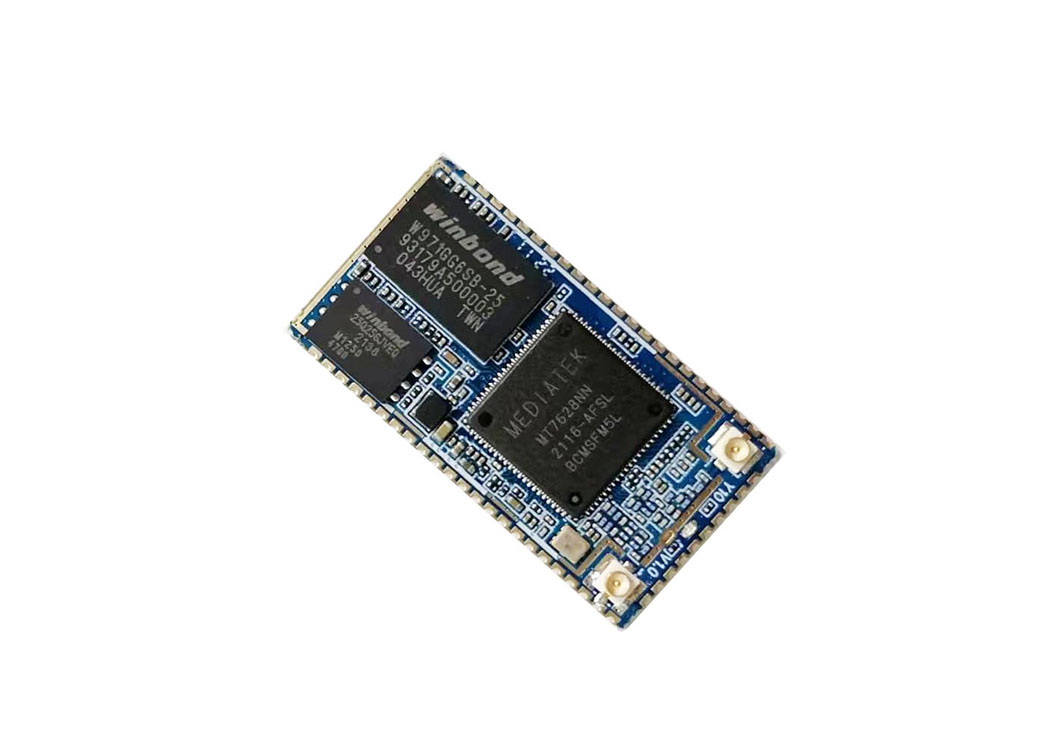

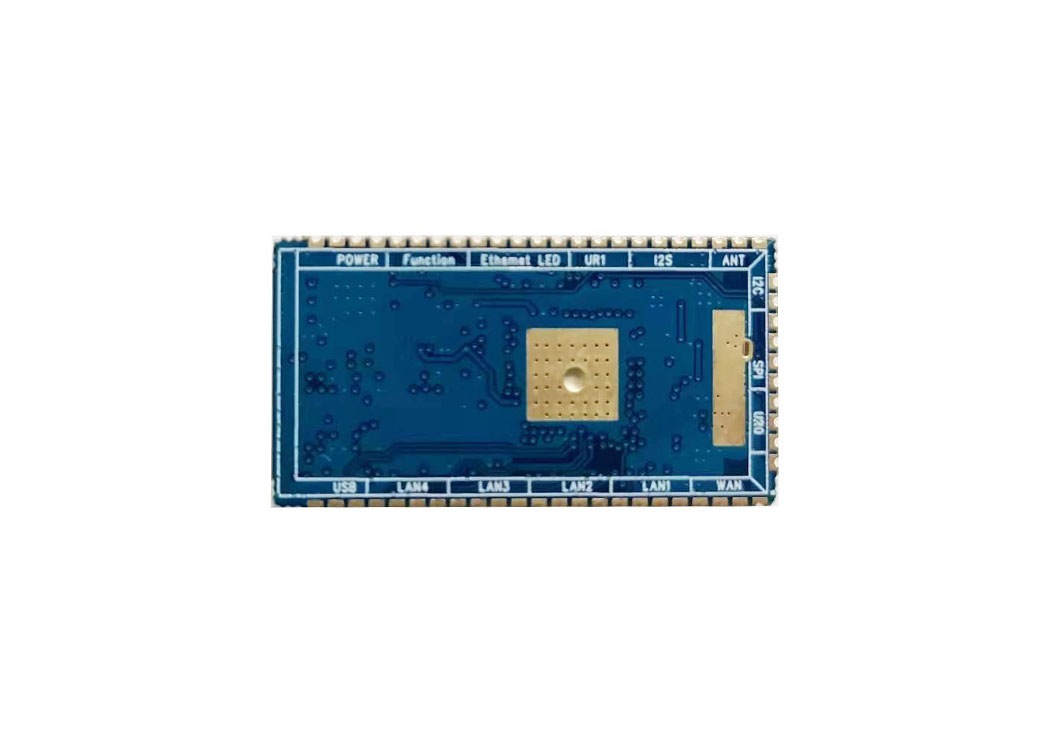

Super MINI OpenWRT WIFI Module / IoT Module
Bookmark and Share
  • Hardware

    CPU

    MT7628AN  MIPS 580MHz

    Flash

    16MB

    RAM

    128MB DDR2

    Antenna

    IPEX Connector x 2

    Input Voltage

    3.3V

    Dimension (L×W)

    35.2mm x 18.7mm

    Package

    SMD

    Interface

    Ethernet Port x 5

    I2C x 1

    PCM x 1

    I2S x 1

    PWM x 1

    SPI x 1

    UART x 1

    GPIO x 8

    Software

    OS

    Open WRT 14.07

    Wireless Standard

    IEEE 802.11b/g/n

    Frequency Range

    2.4GHz

    Wireless Rate

    300Mbps

    Data Rates

    11 b :1,2,5.5,11Mbps

    11g :6,9,12,18,24,36,48,54Mbps

    11n :

    144Mbps @ HT20

    300Mbps @ HT40

    Receiver Sensitivity

    HT40 MCS7 :

    -67dBm@10% PER(MCS7)

    HT20 MCS7 :

    -73dBm@10% PER(MCS7)

    54M :

    -76dBm@10% PER

    11M :

     -91dBm@ 8% PER

    Modulation Technique

    802.11 Legacy b/g

    DSSS (DBPSK, DQPSK, CCK)

    OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

    Wireless Security

    WPA/WPA2, WEP, TKIP, and AES

    Transmit Power

    11n :

    15dBm @HT40 MCS7

    15dBm@HT20 MCS7

    IEEE 802.11g :

    16dBm

    IEEE 802.11b :

    18dBm

    Work Mode

    Router/AP/Repeater



  • Download
  • Description

    OMY-7628N is 300Mbps 11N wireless module with super small size and sufficient pins can expand to various IoT items and Wi-Fi needed products, such as USB WIFI Camera, IoT AP WiFI, Building Automation, Smart Robot,Smart Lighting,Smart Plug etc.



    Features


    Interface

    • Ethernet Port x 5
    • I2C x 1
    • PCM x 1
    • I2S x 1
    • PWM x 1
    • SPI x 1
    • UART x 1
    • GPIO x 8


    Applications

    • USB WIFI Camera
    • IOT AP Wi-Fi
    • 3G/4G Wi-Fi router
    • Repeater Wi-Fi
    • Building Automation
    • Home Automation
    • Smart Robot
    • Smart Toys
    • Smart Lighting
    • Smart Plug
