Platform |
|
|
CPU |
Atheros AR9344, 533MHz |
|
Hardware |
|
|
Flash |
16M |
|
SDRAM |
128M |
|
Antenna |
I-PEX connector for External Antenna |
|
Interface |
WAN/LAN Port x 1 , TF Card x 1 |
|
Button |
Reset |
|
LED |
Power ,LAN, Link/Act |
|
Software |
|
|
System |
OPEN-WRT |
|
Work Mode |
Router,Client,Access Point,Monitor |
|
WAN Type |
Dynamic IP /Static IP/ DHCP/ PPPoE /PPTP/L2TP |
|
Watchdog |
Per 60 seconds Auto-Detect Network and Reset device if loss contact |
|
Port Forwarding |
Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port |
|
Wireless |
|
|
Standard |
IEEE802.11b/g/n |
|
Frequency Range |
2.4Ghz |
|
Signal Rate |
300Mbps |
|
Transmit Power |
27dBm (500MW) |
|
Data Transfer Rate |
802.11n:40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps);
20MHz (144Mbps, 130Mbps, 115Mbps,
86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) |
|
Security Encryption |
64/128/152-bit WEP/WPA/WPA2 ,WPA-PSK ,WPA2-PSK |
|
Power Supply |
DC 12V,1.5A |
|
Environment |
|
|
Storage Temperature |
-45˚C～85˚C |
|
Operate Temperature |
-25˚C～75˚C |
|
Operating Humidity |
95% ( Non-condensing) |
Description

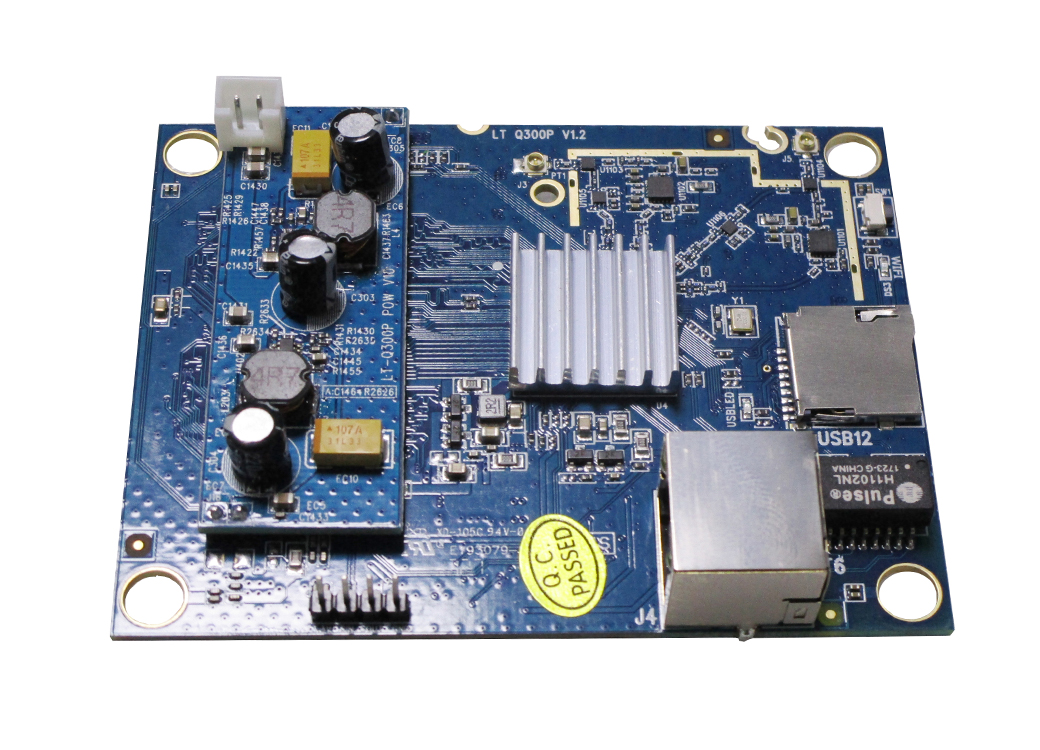

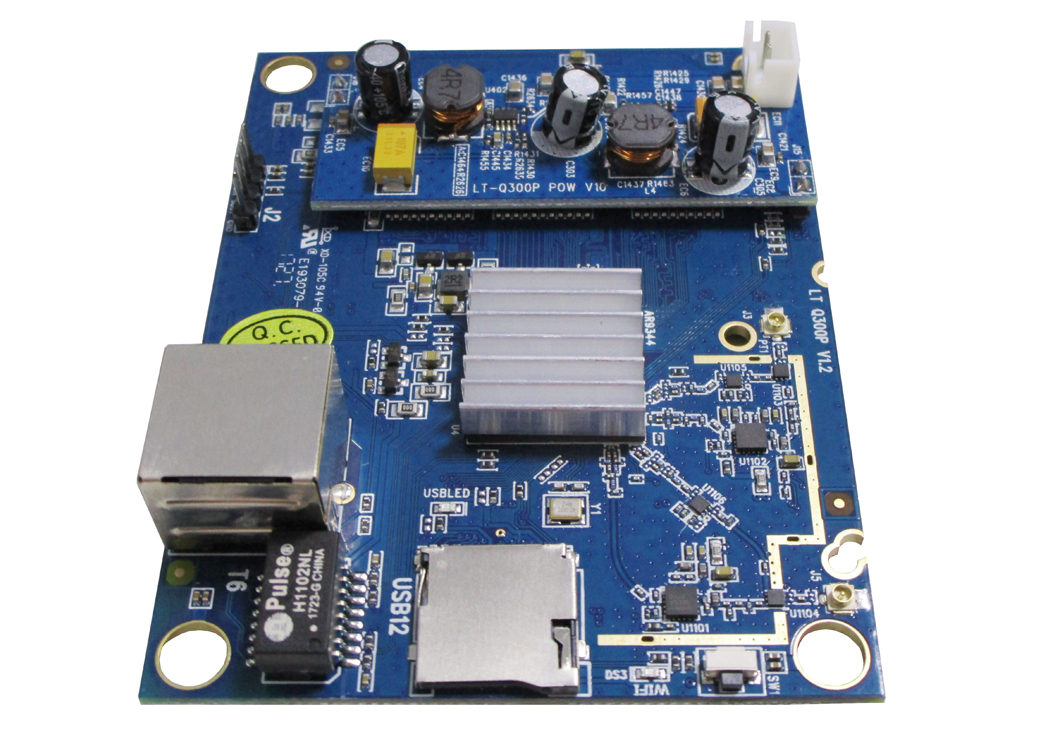

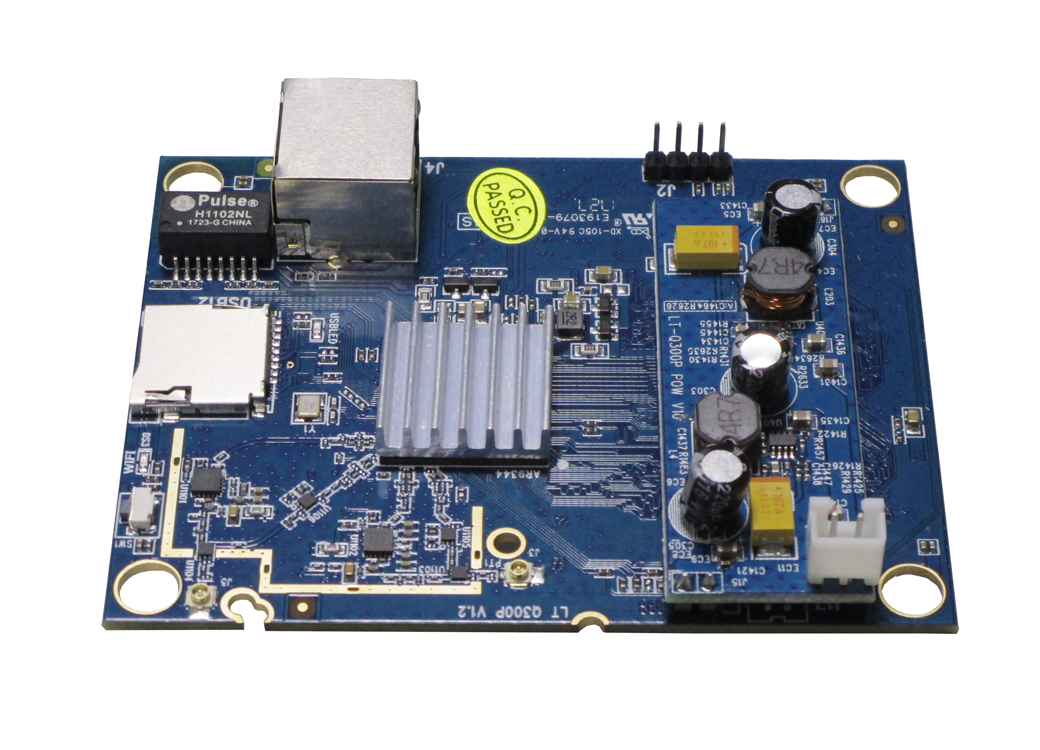

OMY-LTQ300P is AR9344 Chipset based support OpenWRT RS232/RS485 to wifi converter module, It's very convenient for users' product extend to Wi-Fi connection through RS232 / RS485 port, make the device quick access to Wi-Fi, module default to use UART transparent transmission mode. The advantages of transparent transmission mode, User can build up their own protocol format. This module can buit-in to Cameras, Flow Meters, Heat meters, Mornitors ,PLC controllers etc...Features
- Support IEE E802.11b/g/n Standards
- Wireless transmit power 500mW
- Support TCP / IP / UDP Protocol
- Support Router / Client / Access Point / Monitor Mode
- Support Auto dectect network & Reset device function
- Support IPv4 / IPv6 Protocol
- I-PEX Connector for External Antenna
- Support Friendly Web Configuration
- Power Supply DC12V
- Size: 88*69*18mm
