Dual band High Power CPE PCBA
Bookmark and Share
  • Platform

    CPU

    Atheros AR9344

    Hardware

    Flash

    16M

    SDRAM

    128M

    Antenna

    Internal antenna

    Interface

    Gigabit WAN x1 ,Gigabit LAN x 1 , Gigabit Pins LAN x 1

    Button

    Reset

    LED

    WAN ,LAN,2.4G,5.8G,3G/4G

    Software

    System

    OPEN-WRT

    Work Mode

    AP,Router,Client,Repeater,Bridge

    WAN Type

    Dynamic IP /Static

    IP/PPPoE ,PPTP/L2TP/BigPond

    Port Forwarding

    Virtual Servers, Port Triggering, UPnP, DMZ,FTP PrivatePort

    Wireless

    Standard

    IEEE802.11b/g/n ,IEEE802.1x ,IEEE802.3/3u

    Frequency Range

    2.4G ,5G

    Signal Rate

    600Mbps (2.4G 300Mbps +5.8G 300Mbps)

    Transmit Power

    27dBm (500MW)

    Data Transfer Rate

    802.11n:40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps);

    20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
    801.11g:(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
    802.11b:(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

    Security Encryption

    64/128/152-bit WEP/WPA/WPA2 ,WPA-PSK ,WPA2-PSK

    Power Supply

    802.3AF/ATPoE,DC12V,1A

    Environment

    Storage Temperature

    -45˚C85˚C

    Operate Temperature

    -25˚C75˚C

    Operating Humidity

    95% ( Non-condensing)


  • Download
  • Description

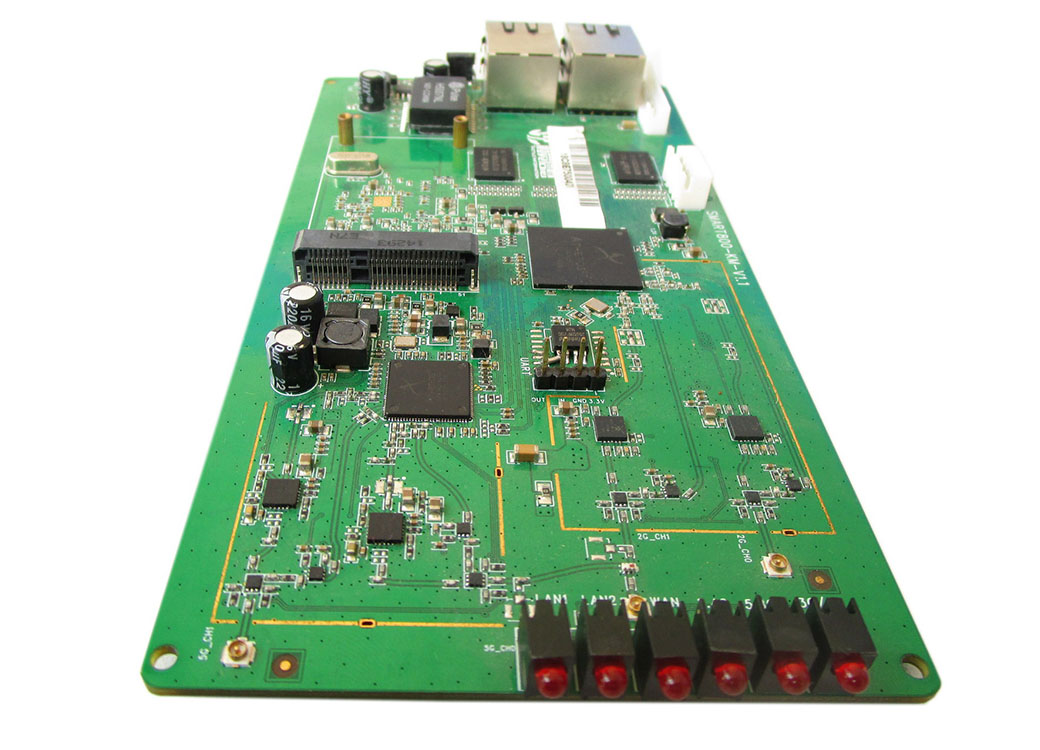

    OMY-SMART800 is a multifunction Dual band High Power outdoor CPE PCBA, the transmit Power up to 27dBm,its a ideal design have multi regular need function and connectors, it has 1*1000Mbps WAN port,1*1000Mbps RJ45 LAN port, 1*1000Mbps PIN LAN port. the PCIe connector for 3G/4G modem,available powered by both 802.3af/at PoE and 12V DC according environment to be used.



    Features


    •  Wireless speed up to 600Mbps
    •  Atheros chipset AR9344
    •  3G/4G SIM card slot
    •  Open-WRT system preloaded
    •  Transmit Power up to 500MW


    ,
