Platform |
|
|
CPU |
Qualcomm chipset QCA9558+QCA9880 |
|
Hardware |
|
|
Flash |
16M |
|
SDRAM |
DDR2 128M |
|
Antenna |
6*3dBi antenna |
|
Interface |
10/100/1000Mbps WAN/PoE *1 , 10/100/1000Mbps LAN *1 |
|
Software |
|
|
System |
OPENWRT |
|
Work Mode |
Router,AP |
|
WAN Type |
static IP,PPPoE,DHCP |
|
Wireless |
|
|
Standard |
IEEE802.11b/g/n/ac |
|
Frequency Range |
2.4Ghz,5.8Ghz |
|
Signal Rate |
450Mbps + 1300Mbps |
|
Throughput |
20MHz/40MHz/80MHz |
|
Transmit Power |
2.4Ghz=27dBm (500mW), 5.8Ghz=25dBm(300mW) |
|
Data Transfer Rate |
802.11ac:up to 1750Mbps 802.11n:40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps);
20MHz (144Mbps, 130Mbps,
115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) |
|
Security Encryption |
64/128/152-bit WEP-SHARED,WEP-OPEN,WPA-PSK ,WPA2-PSK |
|
Power Supply |
IEEE 802.3AF 48V |
|
Environment |
|
|
Storage Temperature |
-45˚C～85˚C |
|
Operate Temperature |
-25˚C～75˚C |
|
Storage Humidity |
95% ( Non-condensing) |
|
Operating Humidity |
95% ( Non-condensing) |
Description

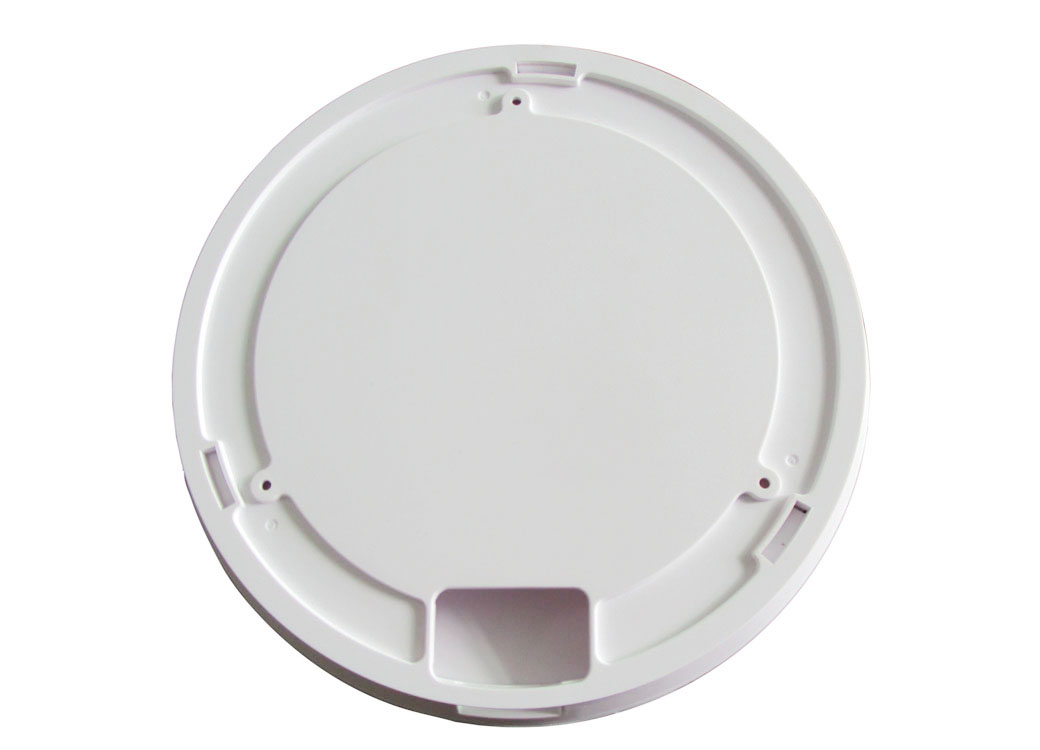

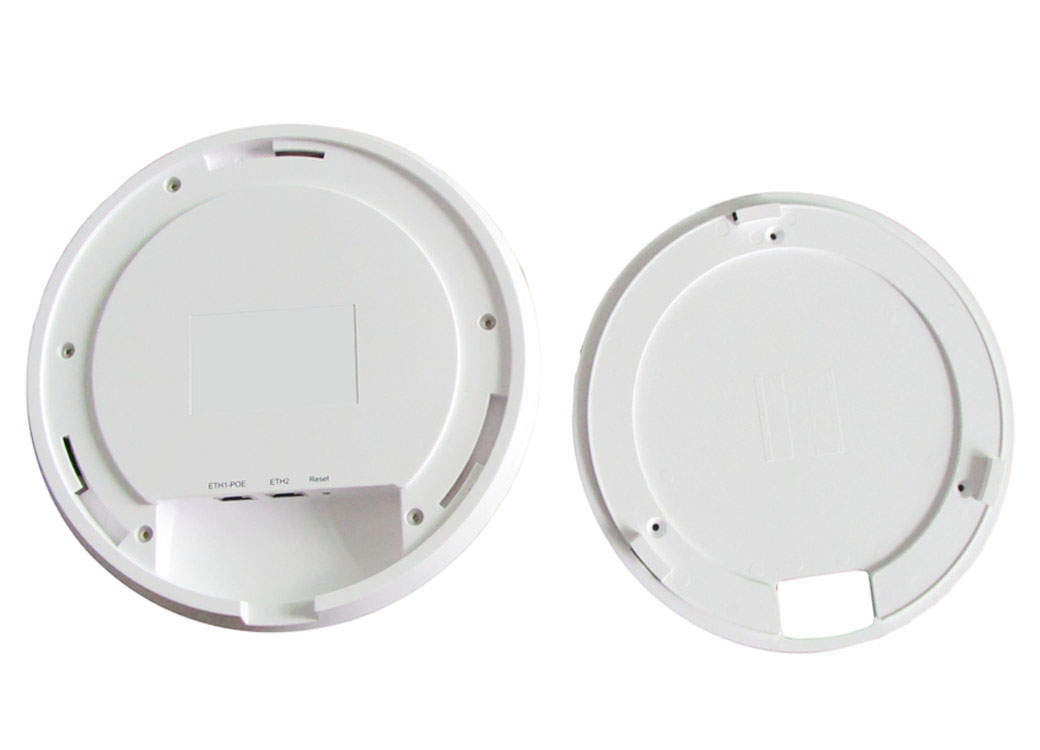

OMY-AP601C is High Power ceiling mount wireless router, Dual band 2.4Ghz + 5.8Ghz , wireless speed up to 1750Mbps and 1000Mbps WAN / LAN port, 2.4Ghz Transmit power 500mW, 5.8Ghz Transmit power 300mW, this solution is an ideal wifi expand device for industrial use, such as supper market, Hall and Car,bus station...Features
- IEEE 802.11AC/B/G/N standards
- Wireless speed up to 1750Mbps (2.4G=450Mbps, 5.8G=1300Mbps)
- 10/100/1000Mbps LAN / WAN port
- Qualcomm chipset QCA9558+QCA9880
- Transmit Power 2.4G=500mW,5.8Ghz=300mW
- Dual band 2.4Ghz & 5.8Ghz
- Support Router, Access Point mode
- Support OpenWRT System
- Power supply 802.3AF 48V
