Gigabit LAN 3x3 MIMO Ceiling WiFi Access Point
Bookmark and Share
  • CPU

    QCA9558+QCA9880+QCA8334

    RF

    11n 3*3+11ac 3*3 MIMO

    Flash

    16M

    SDRAM

    DDR2 128M

    Antenna

    3dBi Internal antenna x 6

    Interface

    1 WAN ,1 LAN (PoE in)

    Button

    Reset

    System

    OPEN-WRT

    Work Mode

    Router,AP,Wireless Station

    WAN Type

    Dynamic IP /Static

    IP/PPPoE ,PPTP/L2TP/BigPond

    Port Forwarding

    Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port

    Standard

    802.11ac,a/b/g/n ,IEEE 802.3AF/AT

    Frequency Range

    2.4~2.4835Ghz

    5.18~5.825Ghz

    Signal Rate

    1200Mbps

    Transmit Power

    Web Configurable 2.4Ghz-27dBm Max., 5.8Ghz-25dBm Max.

    Encryption

    64/128/152-bit WEP/WPA/WPA2 ,WPA-PSK ,WPA2-PSK

    Power Supply

    IEEE 802.3AT PoE

    Storage Temperature

    -45˚C75˚C

    Dimension

    165*165*43mm

    Operate Temperature

    -25˚C60˚C

    Operating Humidity

    95% ( Non-condensing)



  • Download
  • Description

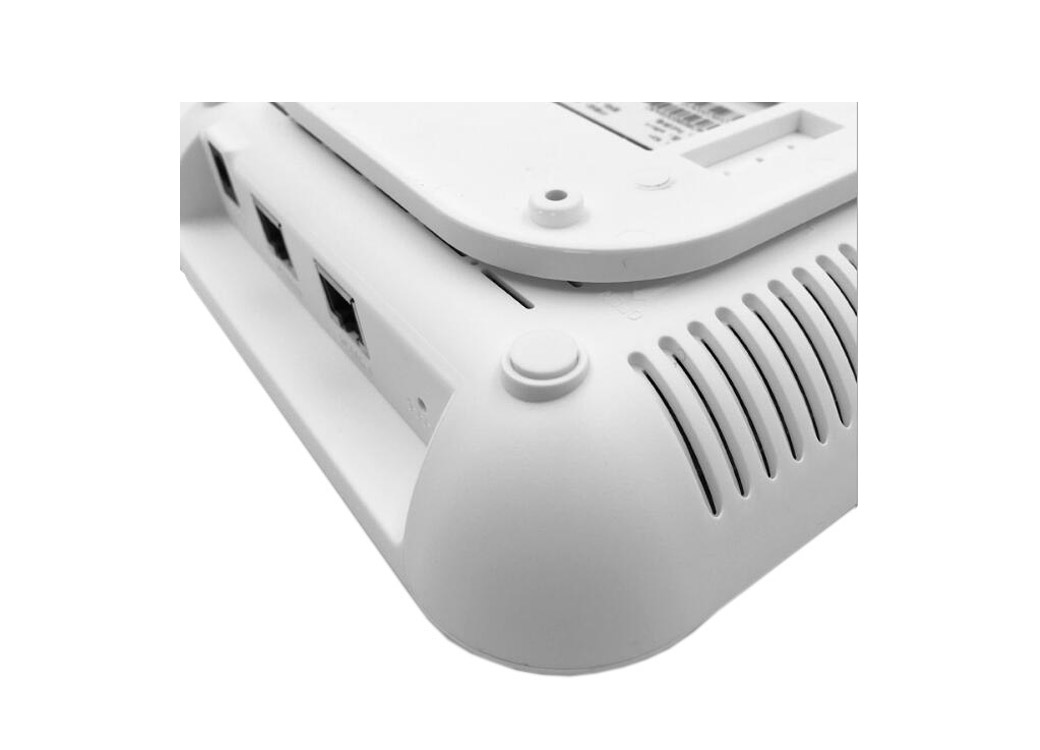

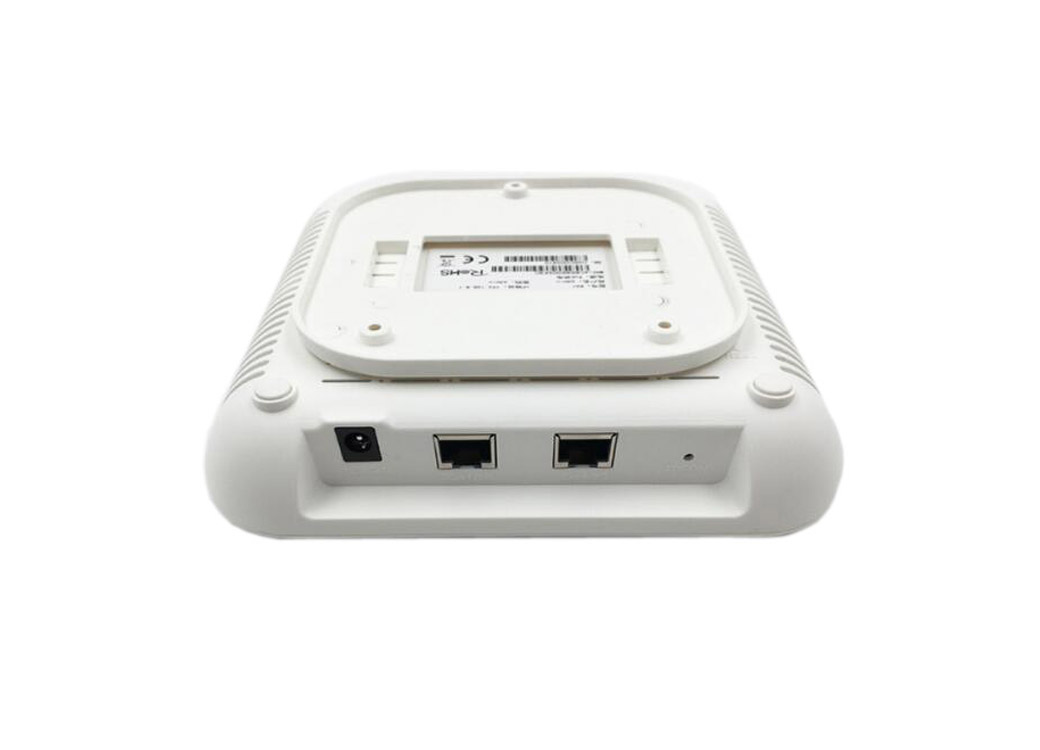

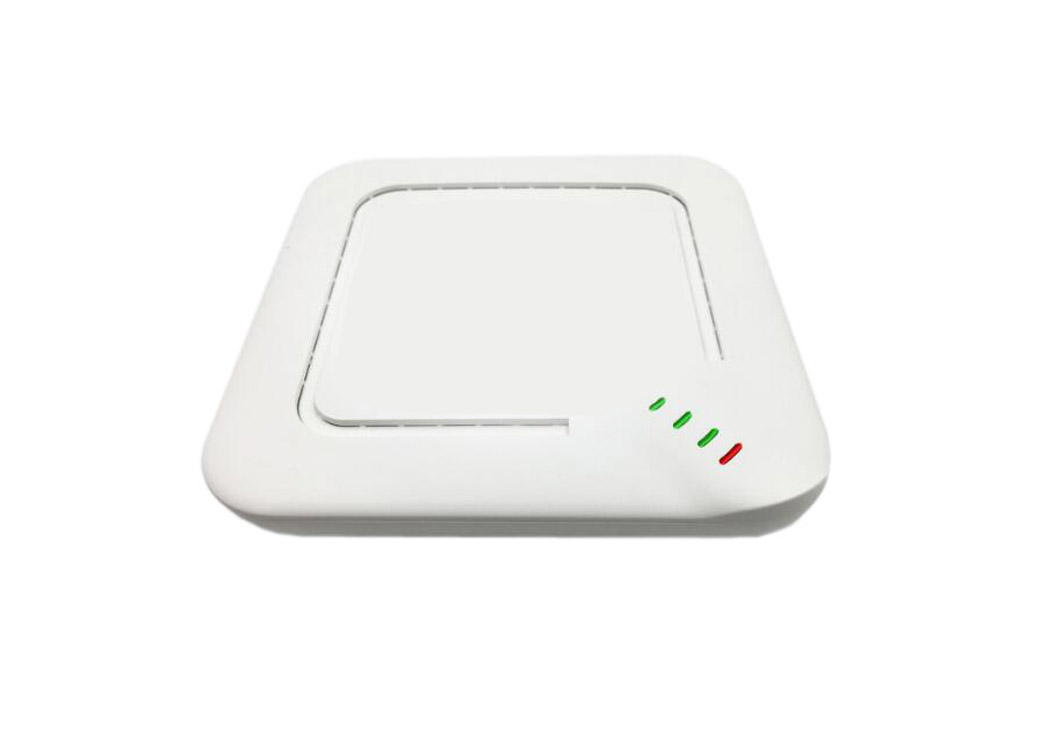

    OMY-K6 is 11n 3*3+11ac 3*3 MIMO Ceiling Access Point, wireless speed up to 1200Mbps with 1000Mbps WAN / LAN port, 2.4Ghz  Transmit power 500mW, 5.8Ghz Transmit power 300mW, this solution is an ideal wifi expand device for industrial use, such as supper market, Hall, Car and bus station...

    Features


    • 802.11AC,A/B/G/N Standards
    • Wireless speed up to 1200Mbps
    • Qualcomm chipset QCA9558+QCA9880+QCA8334
    • Dual band 2.4Ghz & 5.8Ghz
    • Web Configurable Transmit Power up to 500mW
    • Support Open-WRT system
    • Power supply 802.3AT
