Platform |
|
|
CPU |
Mediatek MT7620N |
|
Technical |
|
|
Frequency Range |
2.4~2.4385GHz |
|
Interface |
WAN x1 LAN x 1 Reset x 1 |
|
Wireless channel |
Channel:1~13 |
|
Bandwidth |
20 or 40MHz |
|
Dimension |
120 x 70mm |
|
Antenna |
3dBi Internal antenna x 2 |
|
Power supply |
802.3AF PoE or 110~240V AC |
|
Power consumption |
≦10Watts |
|
Software |
|
|
Operate System |
Customzied OS or Open-WRT |
|
Work Mode |
AP,Router |
|
WAN Type |
Dynamic IP /Static IP/PPPoE ,PPTP/L2TP |
|
Wireless |
|
|
Standard |
IEEE802.11b/g/n |
|
Frequency Range |
2.4-2.4835GHz |
|
Signal Rate |
300Mbps |
|
Transmit Power |
20dBm |
|
Data Transfer Rate |
802.11n:40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps);
20MHz (144Mbps, 130Mbps, 115Mbps,
86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) |
|
Security Encryption |
64/128/152-bit WEP/WPA/WPA2 ,WPA-PSK ,WPA2-PSK |
|
Environment |
|
|
Storage Temperature |
-45˚C～85˚C |
|
Operate Temperature |
-25˚C～75˚C |
|
Operating Humidity |
95% ( Non-condensing) |
Description

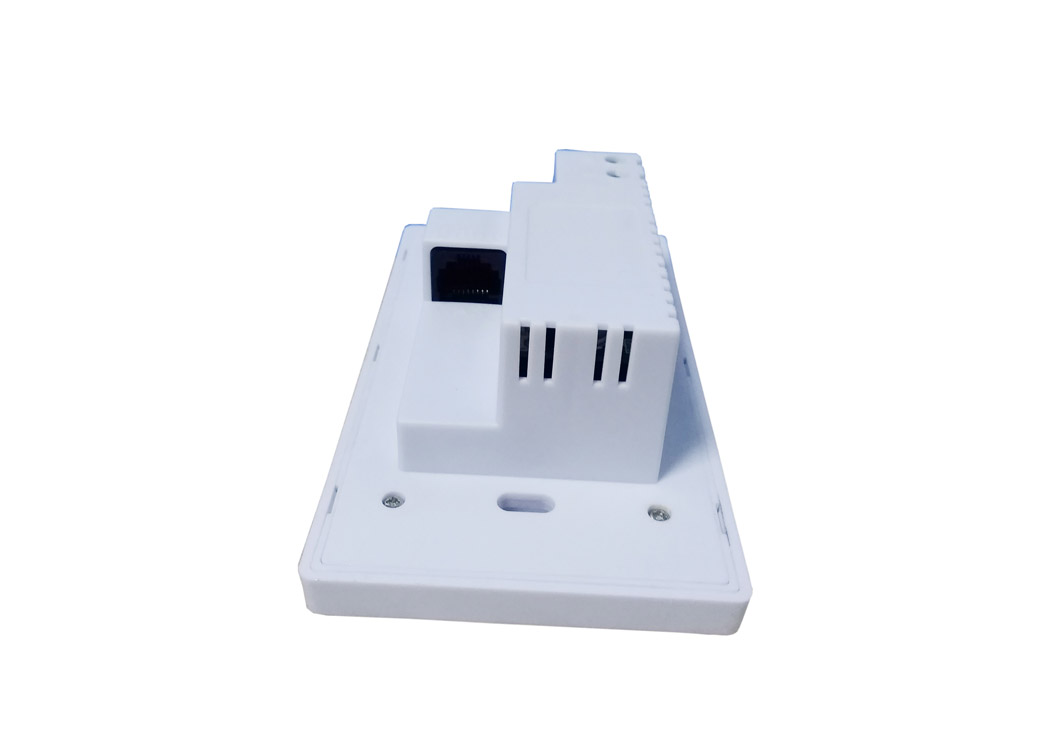

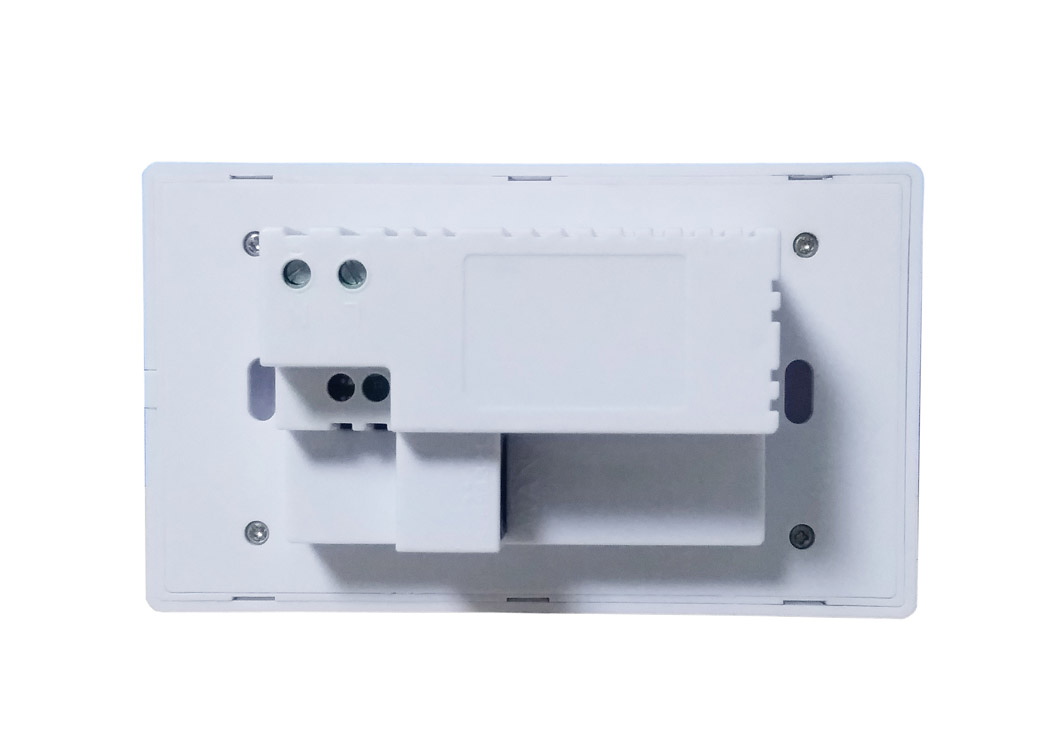

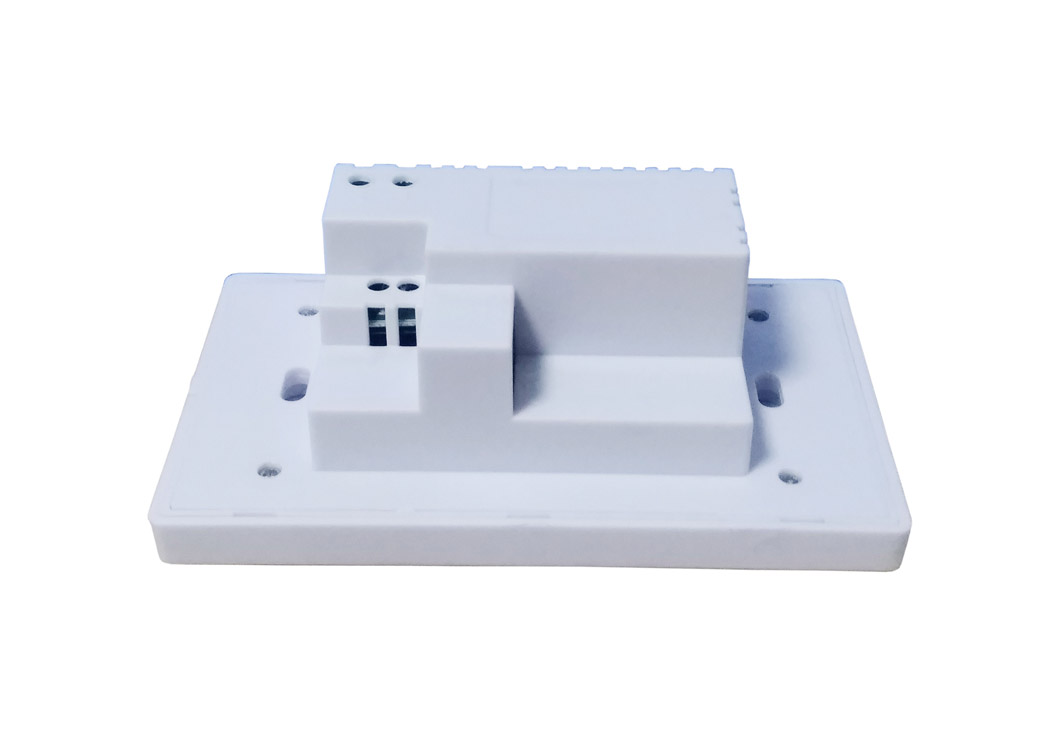

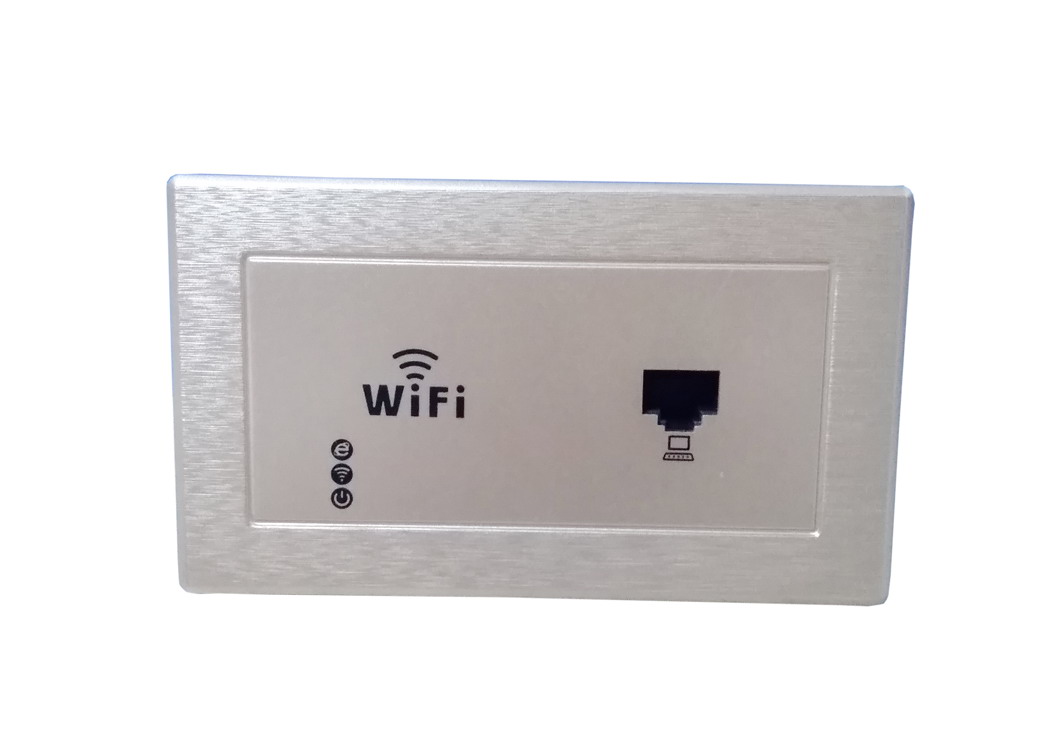

OMY-600A is 300Mbps Wall Mount Access Point sized 120*70mm powered by IEEE 802.3AF PoE or 110V~240V AC,specially designed for small range wifi expand.
OMY-600A provides 1*100Mbps WAN port and 1*100Mbps LAN port ,support 802.11b/g/n,wireless speed up to 300Mbps. Use MT7620N chipset pre-load Customized OS or OpenWRT, its perfect wifi expend device for hotel and home single room
Features
- Complies with IEEE 802.11B/G/N standard
- Wireless speed up to 300Mbps
- MT7620N chipset support OpenWRT
- Powered by IEEE 802.3AF PoE or 110~240V AC
- Dimension 120*70mm
