Platform |
|
|
CPU |
Atheros chipset AR9531+QCA9887 |
|
Hardware |
|
|
Flash |
8M/16M |
|
SDRAM |
DDR2 128M |
|
Antenna |
3*3dBi antenna |
|
Interface |

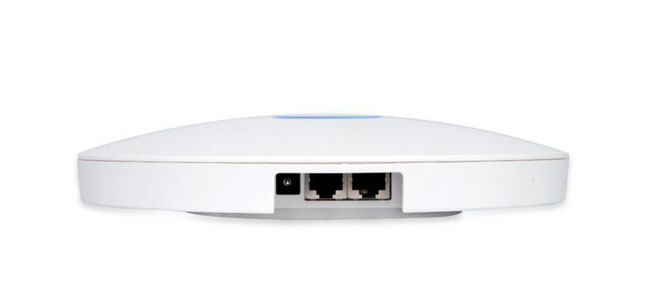

1 WAN ,1 LAN port |
|
Button |
Reset |
|
LED |
Power ,LAN/WAN,WIFI |
|
Software |
|
|
System |
OPEN-WRT |
|
Work Mode |
Router,Client,Bridge |
|
WAN Type |
Dynamic IP /Static IP/PPPoE ,PPTP/L2TP/BigPond |
|
Port Forwarding |
Virtual Servers, Port Triggering, UPnP, DMZ,FTP PrivatePort |
|
Wireless |
|
|
Standard |
IEEE802.11b/g/n ,IEEE802.11ac,,IEEE 802.3AF |
|
Frequency Range |
2.4Ghz,5.8Ghz |
|
Signal Rate |
300Mbps + 433Mbps |
|
Transmit Power |
2.4Ghz-27dBm (500MW), 5.8Ghz-25dBm |
|
Data Transfer Rate |
802.11ac:up to 750Mbps 802.11n:40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps);
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps,
57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) |
|
Security Encryption |
64/128/152-bit WEP/WPA/WPA2 ,WPA-PSK ,WPA2-PSK |
|
Power Supply |
IEEE 802.3AF 48V / DC 12V |
|
Environment |
|
|
Storage Temperature |
-45˚C～85˚C |
|
Operate Temperature |
-25˚C～75˚C |
|
Operating Humidity |
95% ( Non-condensing) |
Description

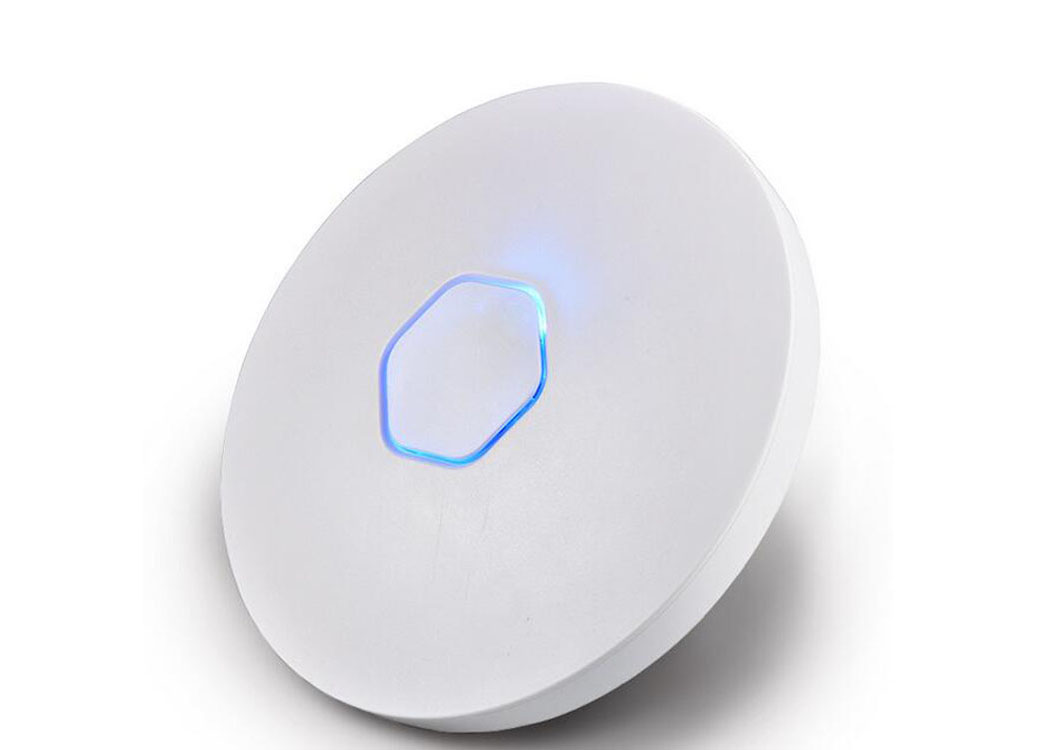

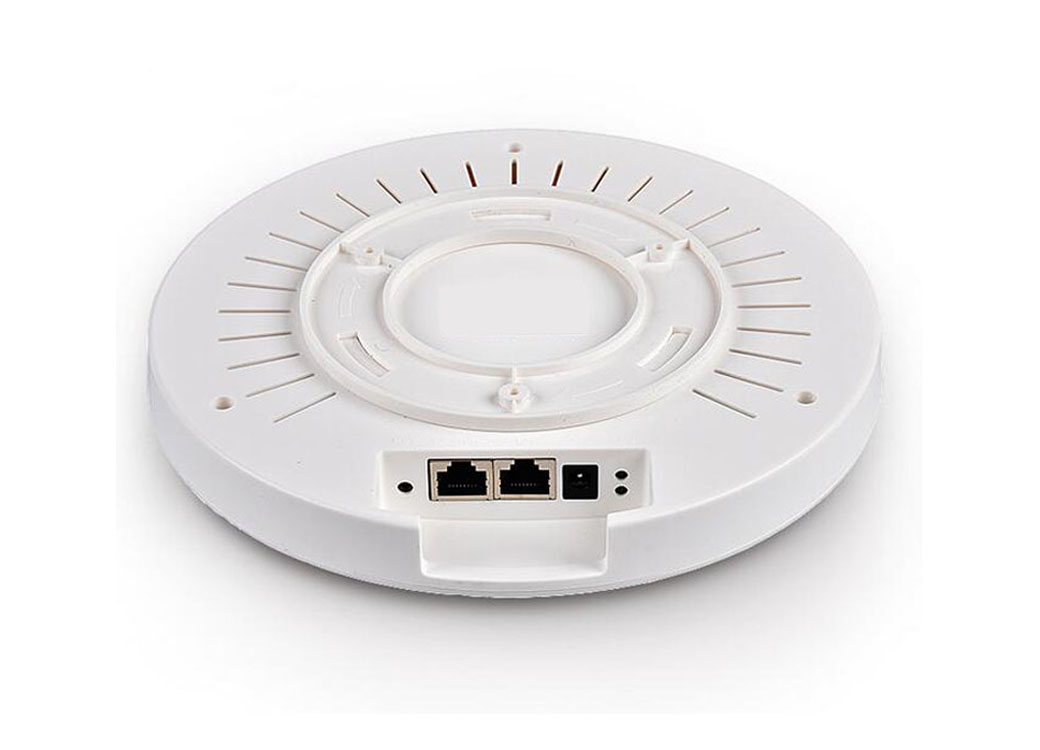

OMY-X3A is Atheros AR9531 chipset based Access piont, Dual band 2.4Ghz + 5.8Ghz , wireless speed up to 750Mbps (2.4G -300Mbps + 5.8G-433Mbps )with ceiling mount design and 500MW (2.4Ghz ) high power transmit power ,which is a ideal wifi expand device supper market, Hall and Car,bus station...Features
- Complies with IEEE 802.11AC/B/G/N standards
- Wireless speed up to 750Mbps (2.4G-300Mbps, 5.8G-433Mbps)
- Atheros chipset AR9531+QCA9887
- Dual band 2.4Ghz & 5.8Ghz
- Transmit Power up to 27dBm (2.4G-500MW)
- Support OpenWRT system
- Power supply 802.3AF 48V or DC 12V
