Platform |
|
|
CPU |
Mediatek chipset,MT7620A, 580Mhz |
|
Hardware |
|
|
Flash |
8M |
|
SDRAM |
64M |
|
Antenna |
Internal 2*5dBi antenna |
|
Interface |
1 WAN ,1 LAN ports |
|
Button |
Reset |
|
LED |
WAN,LAN |
|
Software |
|
|
System |
OPEN-WRT |
|
Work Mode |
AP,Router,Client,Repeater,Bridge |
|
WAN Type |
Dynamic IP /Static IP/PPPoE ,PPTP/L2TP |
|
Port Forwarding |
Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port |
|
Wireless |
|
|
Standard |
IEEE802.11b/g/n |
|
Frequency Range |
2.4-2.4835GHz |
|
Signal Rate |
300Mbps |
|
Transmit Power |
27dBm (500MW) |
|
Data Transfer Rate |
802.11n:40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps);
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps,
57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense) |
|
Security Encryption |
64/128/152-bit WEP/WPA/WPA2 ,WPA-PSK ,WPA2-PSK |
|
Power Supply |
POE 48V or DC 12V,1A |
|
Environment |
|
|
Storage Temperature |
-45˚C～85˚C |
|
Operate Temperature |
-25˚C～75˚C |
|
Operating Humidity |
95% ( Non-condensing) |
Description

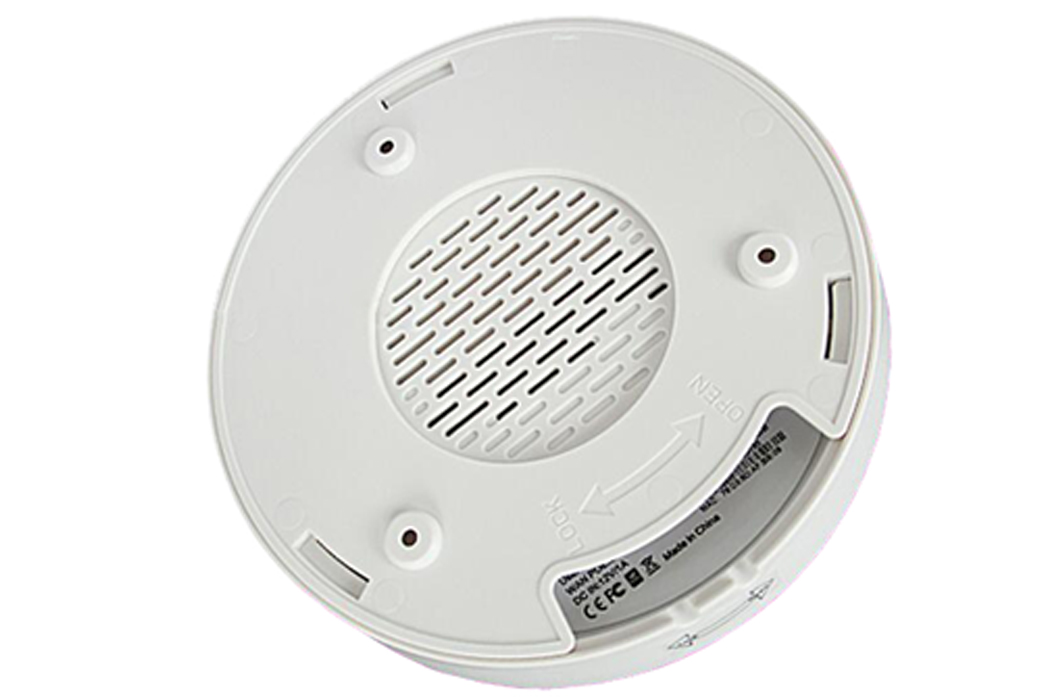

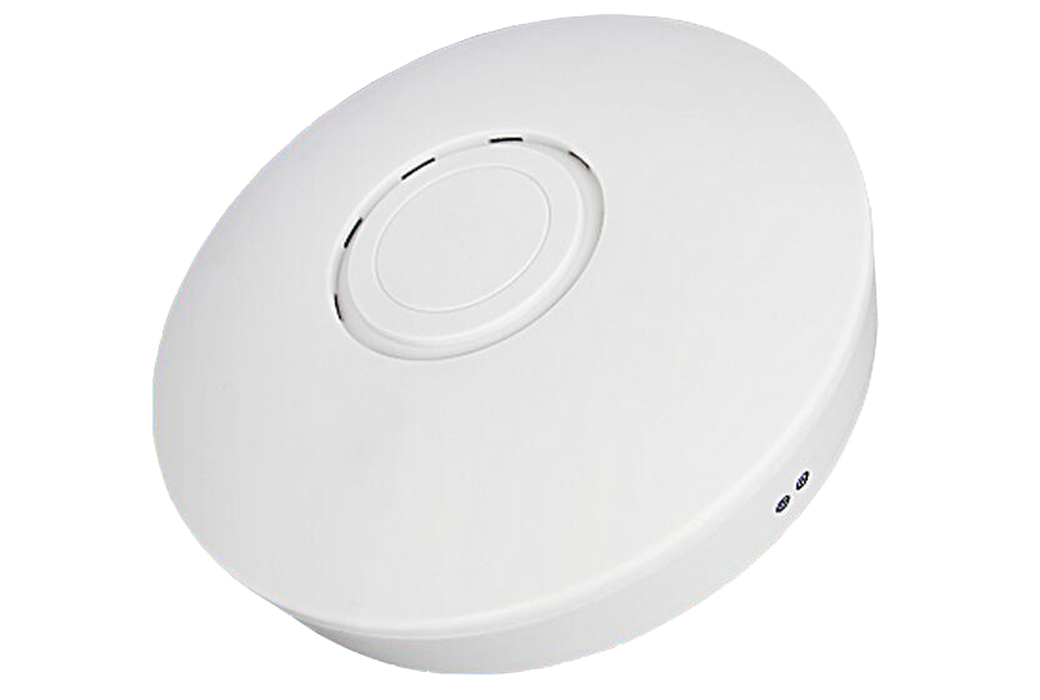

OMY-X2 is Mediatek MT7620A chipset based Access piont, with ceiling mount design and 500MW high power transmit power ,which is a ideal wifi expand device supper market, Hall and Car,bus stationFeatures
- Wireless speed up to 300Mbps
- Mediatek chipset,MT7620A
- 1 WAN port,1 LAN port
- Open-WRT system preloaded
- Transmit Power up to 27dBm (500MW)
- Ceiling Mount design
- Powered by POE 48V or DC 12V,1A
