Platform |
|
|
CPU |
Mediatek MT7620N |
|
WiFi |
IEEE 802.11 b/g/n |
|
Technical |
|
|
Wireless speed |
300Mbps |
|
Frequency Range |
2.4~2.4385GHz |
|
Interface |
WAN x1 LAN x 2 USB 2.0 x 1 RJ11 x 1 Reset x 1 |
|
Wireless channel |
Channel:1~13 |
|
Frequency / Bandwidth |
20 or 20/40MHz |
|
Dimension |
86 x 86mm |
|
Antenna |
3dBi Internal antenna x 2 |
|
Power supply |
802.3AF PoE |
|
Power consumption |
≦10Watts |
|
Environment |
|
|
Storage Temperature |
-40˚C～70˚C |
|
Operate Temperature |
-20˚C～55˚C |
|
Storage Humidity |
5%～95% |
|
Operate Humidity |
5%～65% |
Description

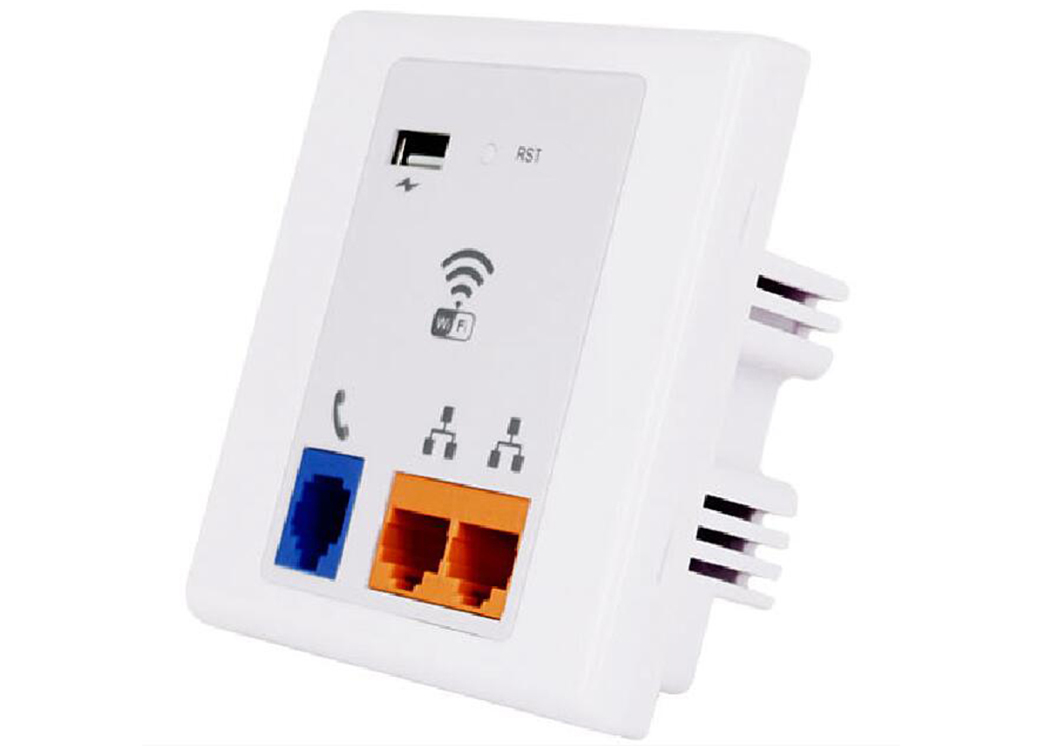

OMY-200A is 300Mbps Wall Mount Access Point powered by IEEE 802.3AF PoE,specially designed for public areas, such as hotels, hospitals,clubs etc.
OMY-200A provides 1*RJ11,2*RJ45 port and 1 USB 2.0 interface, support 802.11b/g/n, wireless speed up to 300Mbps. Use MT7620N chipset can pre-load OpenWRT, with Built-in Airgain smart antenna provide high quality and high speed wireless network access service.The USB port output 5V/1A power to portable devices like mobile phones,Pads etc.
Features
- Complies with IEEE 802.11B/G/N
- Wireless speed up to 300Mbps
- MT7620N chipset support OpenWRT
- Powered by IEEE 802.3AF PoE
- USB 2.0 output 5V /1A power
