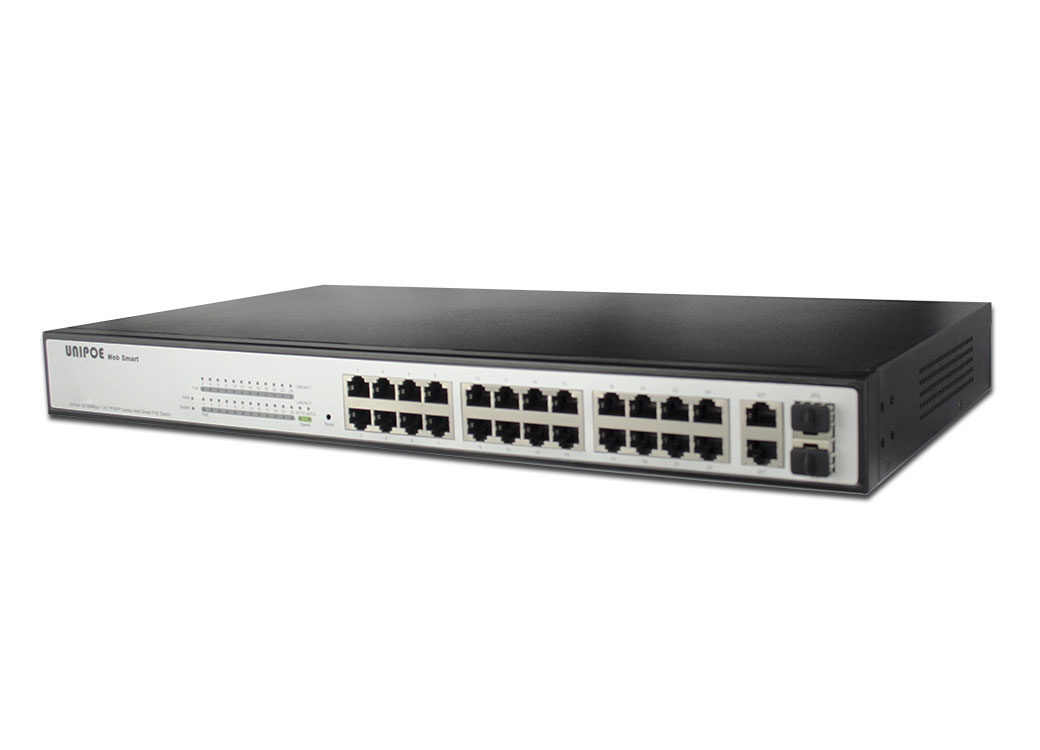

Web Smart PoE Switch 24-Port 10/100Mbps + 2G TP/SFP
Bookmark and Share
  • Hardware information


    IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at

    Network Media

    10BASE-T: UTP category 3,4,5 cable (≤100m)

    100BASE-TX: UTP category 5,5e cable (≤100m)

    1000BASE-T: UTP category 5e,6 cable(100m)

    1000BASE-X: SMF or MMF SFP module(Optional)


    PWR (Green) SYS(Green) PoE (Orange)

    LINK/ACT(Green) Speed(Green)

    MAC Address Table

    4K, Auto-learning, Auto-aging

    Transfer mode


    Maximum packet length

    1536 Byte

    Switching Capacity


    Dimensions (L*W*H)

    440*232*45 mm



    Power Input

    AC  100~240V, 50/60Hz

    Power output

    DC 55V/4.5A, 55V/5.6A(Optional)

    PoE(Power Over Ethernet)

    PoE port


    PoE Power on RJ-45

    Mode A  1/2(+),3/6(-)

    PoE Power Output

    Voltage: 55V DC Power: 32W(Max)

    PoE Power Budget

    240W/300W (According to the power)


    Operating Temperature

    0°C ~40 °C(32 °F~104°F)

    Storage Temperature

    -40 °C ~70 °C(-40 °F~158°F)

    Operating Humidity

    10% ~ 90% non-condensing

    Storage Humidity

    5% ~ 90% non-condensing

    Software Function

    Port Configuration

    Port configuration, Port mirroring, Bandwidth Control, Broadcast Storm Control, Port Counter

    Port Trunking

    Supports up to 3 Trunk groups

    Spanning Tree Protocol

    STP (802.1d), RSTP (802.1w), Loopback Detection


    Port Base VLAN, Tag Base VLAN, Multi-to-1 Setting


    Port, 802.1p , IP/DS Based priority
    TCP/UDP Port Base

    Security Setting

    MAC Address Binding, TCP/UDP Filter

    System Configuration

    Firmware upgrade by HTTP


    DHCP relay agent

    DHCP Client,DHCP Relay / Option 82

    PoE power control

    PoE status, PoE Setting, PoE Power Delay, PoE Scheduling

    NTP Setting

  • Download
  • Description

    OMY-ES328PM provides 24 10/100Mbps Fast Ethernet Ports that supports 802.3at/af compliant PoE, powerful and fl­exible enough for users to deploy wireless access points or IP-based network surveillance cameras. the PoE Switch also provide two Gigabit Ethernet ports, either TP or SFP per port. The two Gigabit ports either can be 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP interfaces.

    OMY-ES328PM is web smart switch, and can be configured by web based interface. Including administrator, port management, PoE Setting, VLAN setting, each port statistics, trunking setting, QoS setting, security filter, configuration/ backup/recovery, and so on.

    With all these advanced features, the Gigabit Smart PoE Switch is an ideal choice for small and medium business networking.


    Interface information

    • 24*10/100Mbps RJ45 Ports
    • 2*Gigabit TP/SFP Combo Ports
    • 24 PSE Ports

    PoE(Power over Ethernet)

    • Complies with IEEE802.3af/at Power over Ethernet
    • Supports PoE Power up to 32W for each PoE port
    • Auto detect power device
    • Remote power and Data feeding up to100m
    • PoE power Disable/Enable and PoE power consumption monitoring by management interface


    • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
    • 4K MAC address, automatic address learning and address aging
    • Remote Web interface for switch management and setup
    • Support port mirroring, trunking, Bandwidth Control, Broadcast Storm Control
    • Support QoS, VLAN, STP

    PoE Features

    OMY-ES328PM can provide up to 32Watts of power to attached devices, such as VoIP phones, wireless access points, surveillance cameras etc, all over existing cat. 5cables. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.



    OMY-ES328PM providing 24-Port PoE in-line power interfaces , and can easily build a power centrally-controlled IP phone system, IP Camera system and Wireless AP group for the enterprise. Cameras can be installed around the corner in the company or campus for surveillance demands. Without the power socket limitation, It makes the installation of cameras more easily and efficiently.
